MOZA  |  SKU: RAMO7270780

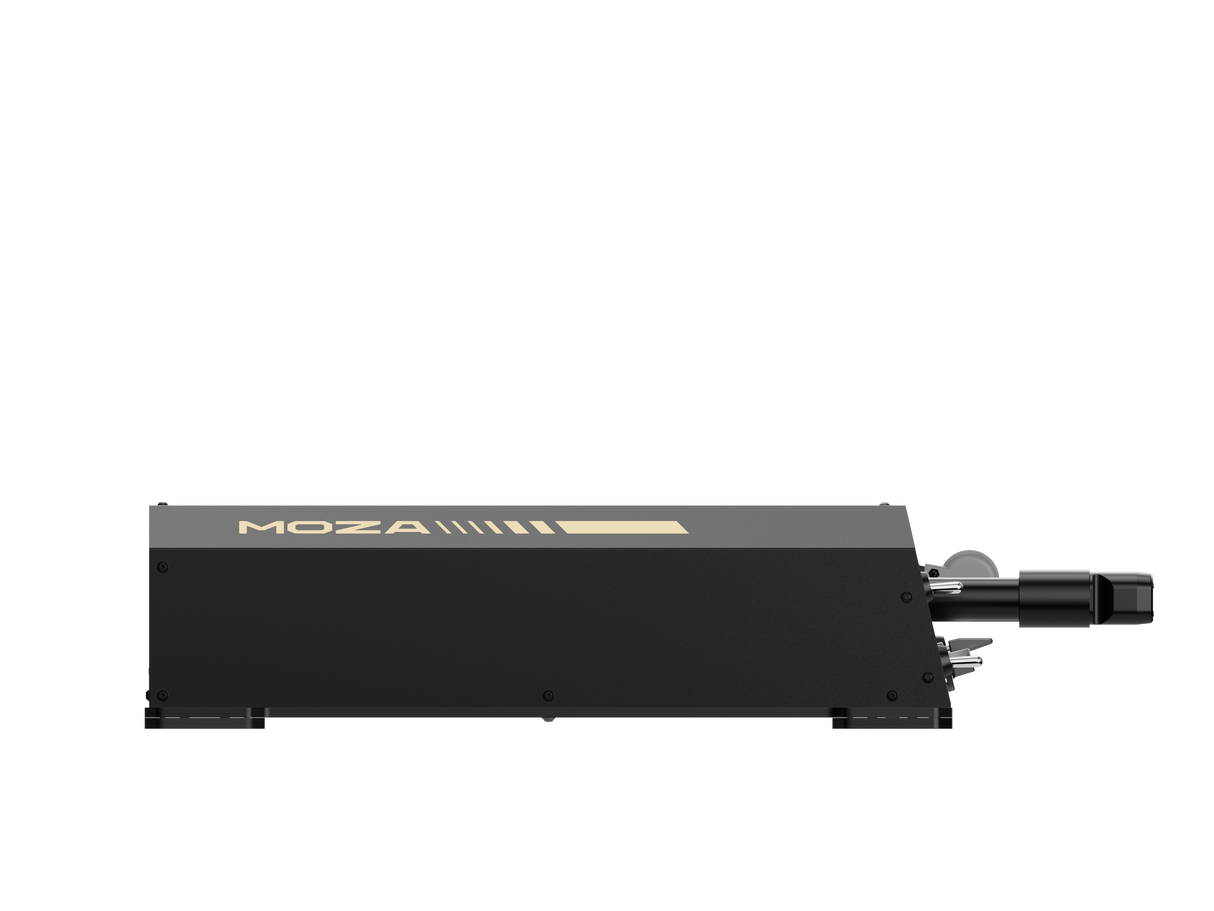

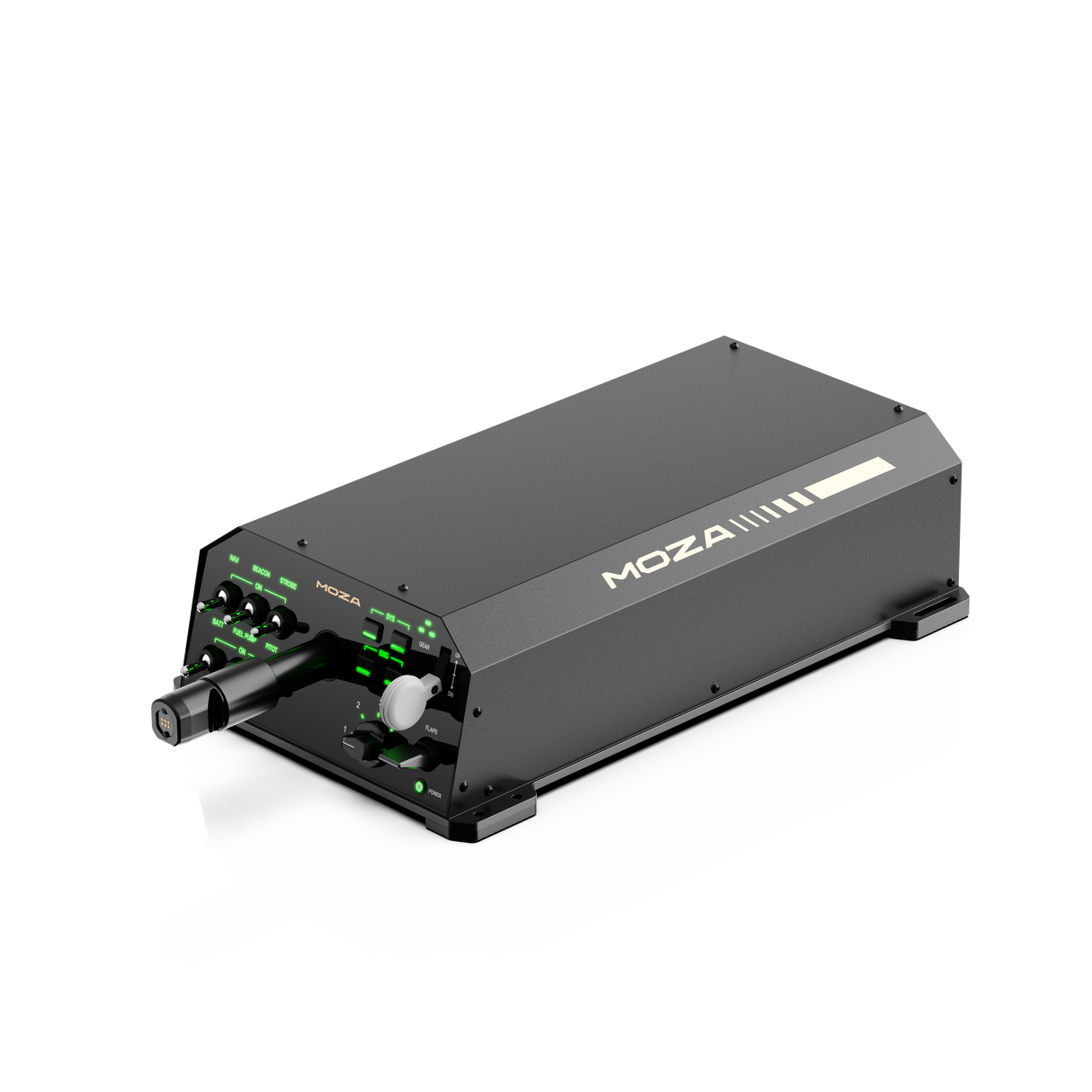

Moza AY210 Force Feedback Yoke Base

Regular price $1,399.99
iRacing Giveaway
Spend $500+ online and
get 3 months FREE iRacing
More info

Description

All-Aluminum Quick-Release Mechanism

The yoke features a quick release mechanism, similar to those used in racing cars, enabling fast and effortless attachment or detachment from the flight base. This design allows for easy switching between different yokes to suit your needs.

Programmable Switch Panel
The front panel features 13 physical switches, fully customizable via the MOZA Cockpit software. Users can program these switches to manage advanced functions like lighting, telemetry, and long-press commands, delivering a more immersive experience during takeoff, landing, and flight.

150mm Travel Distance
With an extended 150mm range of motion, this system provides greater control and precision, meeting the demands of professional-grade performance.

9Nm Torque and 210N Push Force
The roll axis delivers a continuous torque of 9Nm, while the pitch axis can produce a peak push and pull force of 210N. These robust outputs ensure highly detailed feedback, faithfully simulating the dynamic handling and responsiveness of real aircraft.

Compatible with Leading Flight Sim Games
The system works with most major flight simulation titles. It also supports built-in telemetry force feedback for games like Microsoft Flight Simulator 2020, Microsoft Flight Simulator 2024, and X-Plane 12.

High-Resolution Encoder
Featuring a 15-bit high-resolution magnetic encoder, the yoke delivers real-time feedback with near-zero latency, precisely replicating flight dynamics for an ultra-smooth and responsive experience.

All-Aluminum Alloy Construction
The entire body is constructed from high-quality aluminum alloy, offering a sleek, smooth finish and outstanding durability. This material ensures both rigidity and long-lasting performance.


Versatile Mounting Options
The system accommodates a range of mounting methods, including desktop mounting, suspended desktop clamping, direct installation on simulator cockpits, and aluminum profile mounts. This flexibility ensures compatibility with various setups and user preferences.


Extensive Software Customization
MOZA Cockpit provides a wide range of customization options, enabling users to fine-tune settings such as lighting brightness and behavior. The software also features diverse force feedback presets to enhance the simulation experience.


Specifications

Dimensions: 243 × 403 × 216 mm
Housing Material: Aluminum alloy
Weight: 8.0 kg
Motors: Dual high-performance servo motors
Max Pitch Force: 210N
Sustained Roll Torque: 9Nm
Travel Distance: 150mm
Compatible Yokes: MOZA Yoke Series
Power: 216W
Voltage: 110~220V AC → 36V DC
Chip Precision: 15-bit magnetic encoder
USB Refresh Rate: 1000Hz
Mounting Options: Desktop clamp (optional), suspended desktop clamp (optional), direct mounting on a simulator cockpit
Connection Ports: Power, USB, throttle, rudder pedals, panel, etc.
Emergency Stop Switch: Optional
Intelligent Telemetry Force Feedback: Supported (no plug-in required)
Native Force Feedback: Supported
Platform Support: PC

Included Accessories:
     •           Power adapter
     •           Power cable
     •           Data cable
     •           Screws and wrench
     •           User manual
