Moza Mbooster Active Pedal
Couldn't load pickup availability
Description

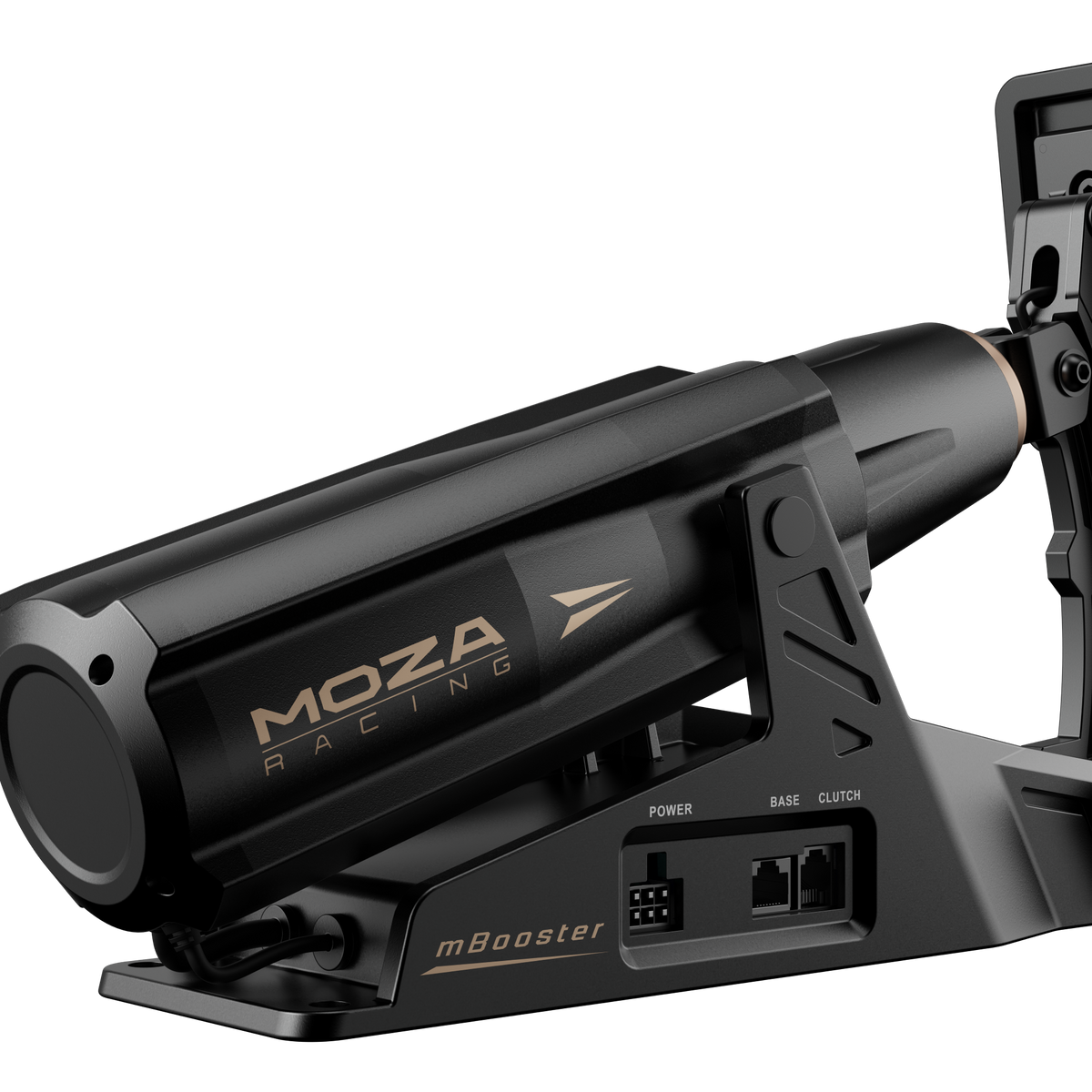

The MOZA mBooster Active Pedal redefines sim racing with realistic dynamic force feedback and precision control. It delivers unparalleled accuracy and responsiveness and features dual 200KG load cell sensors and a 21-bit high-resolution magnetic encoder. The high-torque density motor and MOZA Pit House software enable one-click customization for throttle, brake, or clutch functions. With adjustable pedal feel, real-time ABS, traction control, engine vibration, and G-force feedback, the mBooster ensures an immersive and true-to-life driving experience. Compatible with CRP2 pedals for enhanced performance and seamless integration with MOZA Racing ecosystems.
SPECS
- Body Material: Aluminum Alloy
- Pressure Sensor Range: 0–200 kg
- Brake Sensor: Load Cell Sensor and Angle Sensor
- Angle Sensor Resolution: 15-bit (32768 PPR)
- Peak Power: 270W
- Input Voltage: 110V~220V AC → 48V DC
- Travel Adjustment: 0–25°
- Angle Adjustment: 0–15°
- Curve Adjustment: Adjustable
- Real-time Pedal Output Display: Adjustable
- Pressure Engagement Point: Adjustable
- Surface: Biomimetic curved
- MOZA mBooster Active Pedal × 1
FAQs

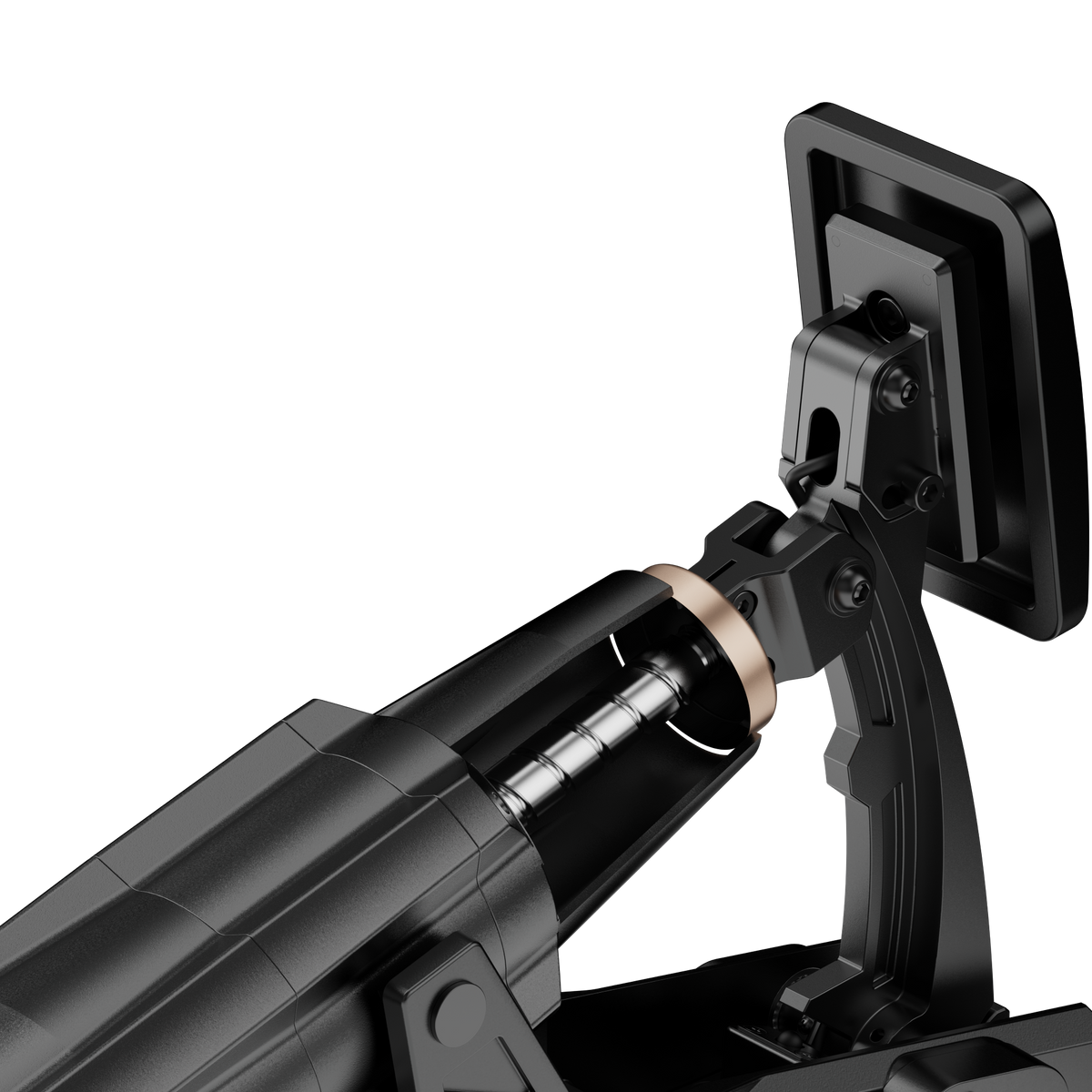

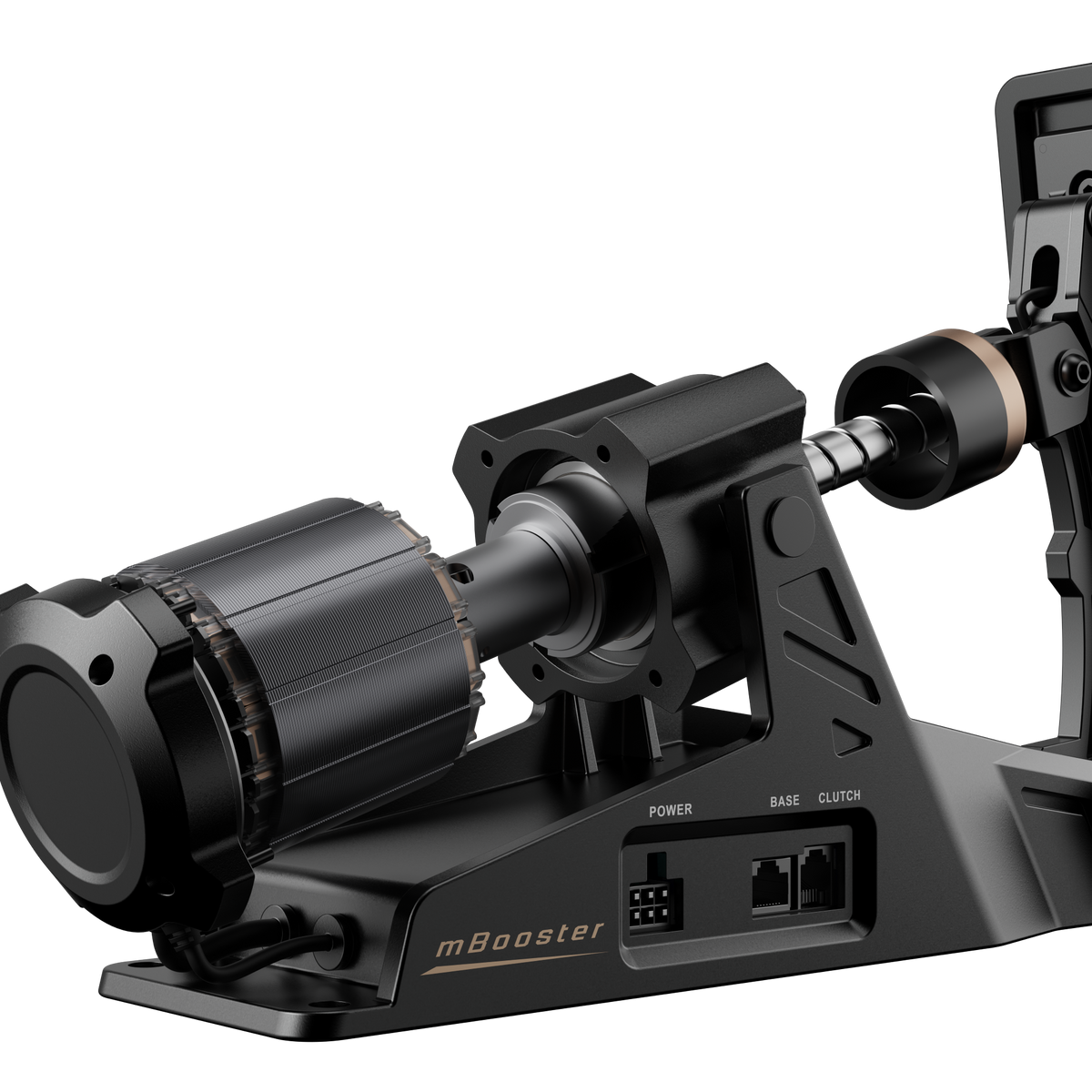

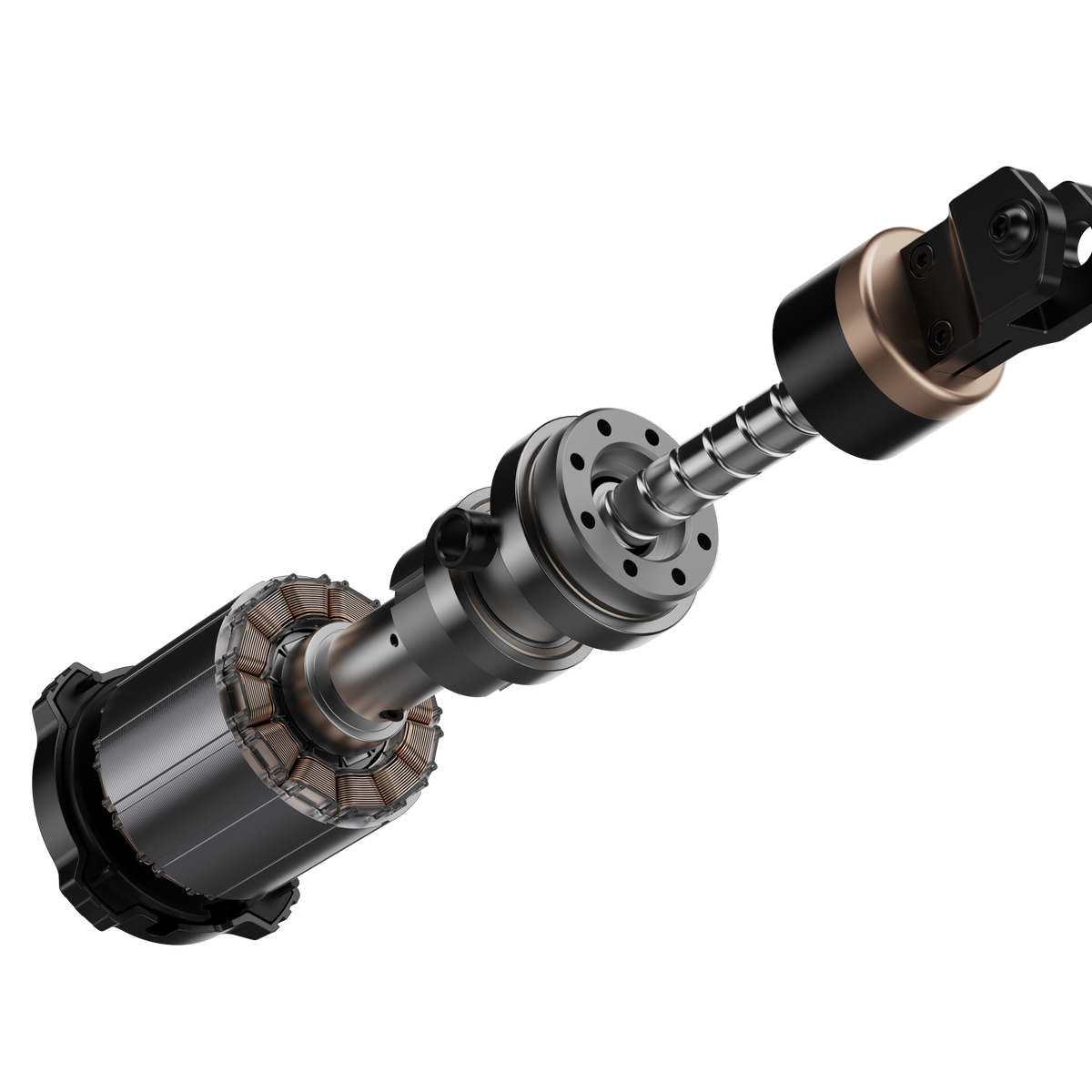

The mBooster is not just a passive pedal—it features active force feedback powered by a high-torque servo motor and ball screw drive. It simulates real-world effects like ABS lockup, traction control (TC), engine vibration, G-force, and more. This delivers an unmatched level of realism and immersion for sim racers.
Not at all. With MOZA Pit House software, you can adjust rebound, stroke, damping, friction, and switch between throttle, brake, or clutch modes with a single click—no tools or disassembly required.
Yes! The mBooster is fully compatible with CRP2 pedals. You can combine it with:
- CRP2 Clutch Pedal for a three-pedal setup
- mBooster Pedal Set (with CRP2 Throttle) for a plug-and-play solution
Note: CRP2 users will need the mBooster Extension Plate for optimal mounting.
Absolutely. The closed, rail-free mechanical structure and high-efficiency servo motor ensure quiet operation (only 44dB) and low maintenance. Built with aviation-grade aluminum, it has passed millions of stress tests, offering extreme reliability for sim racers of all levels.
Yes. It features dual 200KG load cell sensors, a 15-bit angle sensor, and a 21-bit high-resolution magnetic encoder, giving you zero dead zones and ultra-precise response. Whether you’re trail braking into a hairpin or modulating throttle mid-corner, the mBooster gives you confidence, control, and consistency lap after lap.
