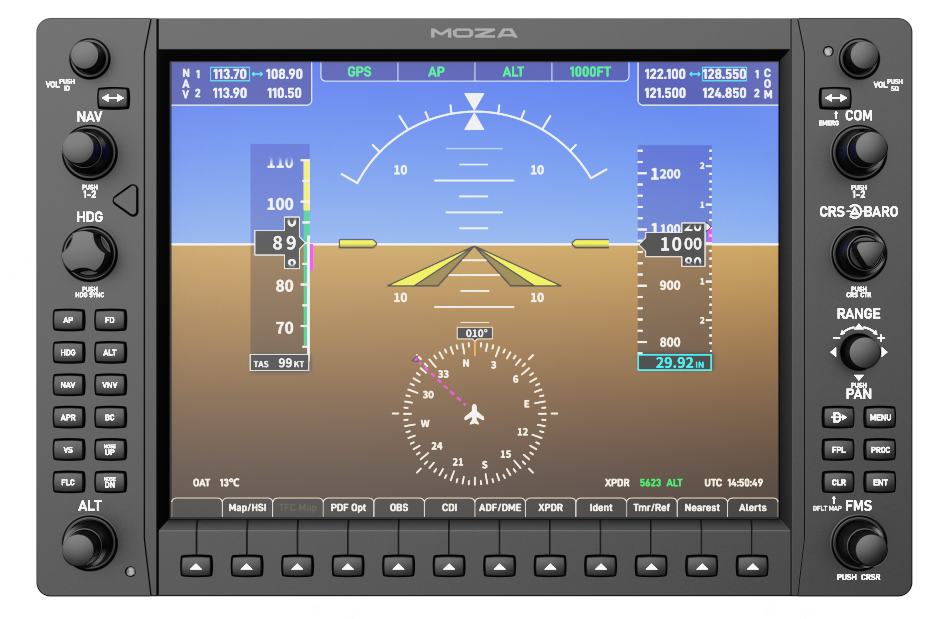

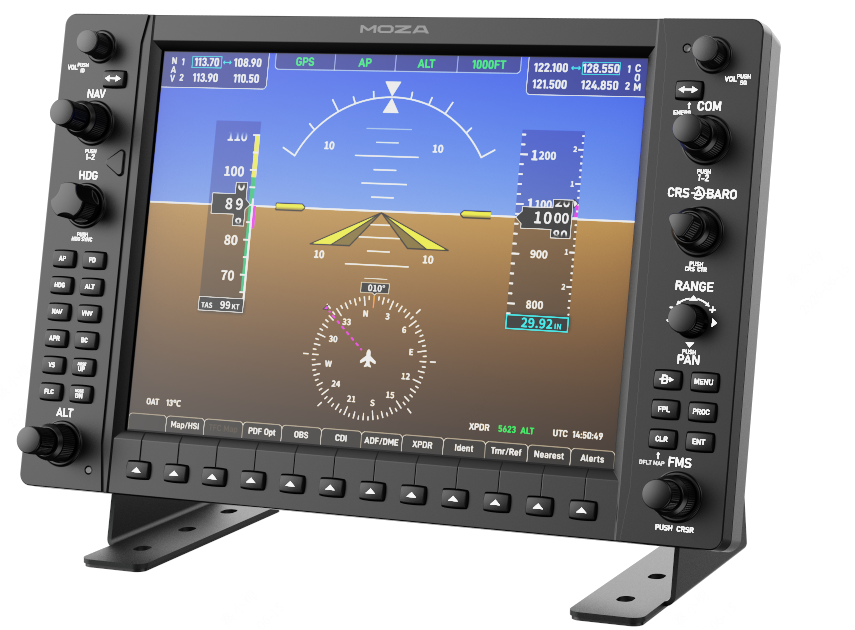

MOZA MGX1000 INSTRUMENT PANEL

Description

The MOZA MGX1000 Flight Instrument Panel brings a full-size G1000-style avionics display into your home cockpit. Built around a 10.4-inch IPS screen and a true-to-size control layout, it gives flight sim pilots a more realistic way to manage navigation, flight data, maps, and aircraft systems without relying on mouse clicks and keyboard shortcuts.

Designed for Microsoft Flight Simulator and X-Plane, the MGX1000 can be configured as either a Primary Flight Display (PFD) or Multi-Function Display (MFD) through MOZA Cockpit. Use one panel on its own, or pair two together for a full glass cockpit setup.

Key Features

• Full-size G1000-style layout: Replicates the real panel size, button layout, rotary controls, and operating feel for a more authentic flight deck experience.
• 10.4-inch IPS display: 1024 x 768 resolution with vivid colour and up to 500 nits brightness for clear day and night flying.
• DisplayLink connection: Sends the screen feed and controls through USB, with no HDMI cable or dedicated GPU display output required.
• Tactile controls: Weighted rotary knobs, responsive buttons, and a 7-way ALPS joystick switch for confident avionics control.
• Adjustable cockpit lighting: Screen brightness, character lighting, and button-status lighting can be adjusted through MOZA Cockpit.
• PFD or MFD setup: Each unit can be independently assigned as a Primary Flight Display or Multi-Function Display.
• Wide simulator support: Compatible with MSFS 2020, MSFS 2024, X-Plane 11, and X-Plane 12.
• Flexible mounting: Use the included desktop stand, 75 x 75 mm VESA mounting, profile rig mounting, or bottom mounting points.

Specifications

• Product: MOZA MGX1000 Flight Instrument Panel
• Dimensions: 304 x 201 x 66.8 mm
• Weight: 1.17 kg
• Material: ABS + PC
• Screen: 10.4-inch IPS
• Resolution: 1024 x 768
• Connection: USB-A, DC 5 V
• Rated Voltage: 5 V USB, 5 V DC
• Rated Current: 900 mA USB, 2 A DC
• Platform: PC
• Included Accessories: Data cable, desktop stand, power adapter
