Moza R12 V2
Couldn't load pickup availability
Description

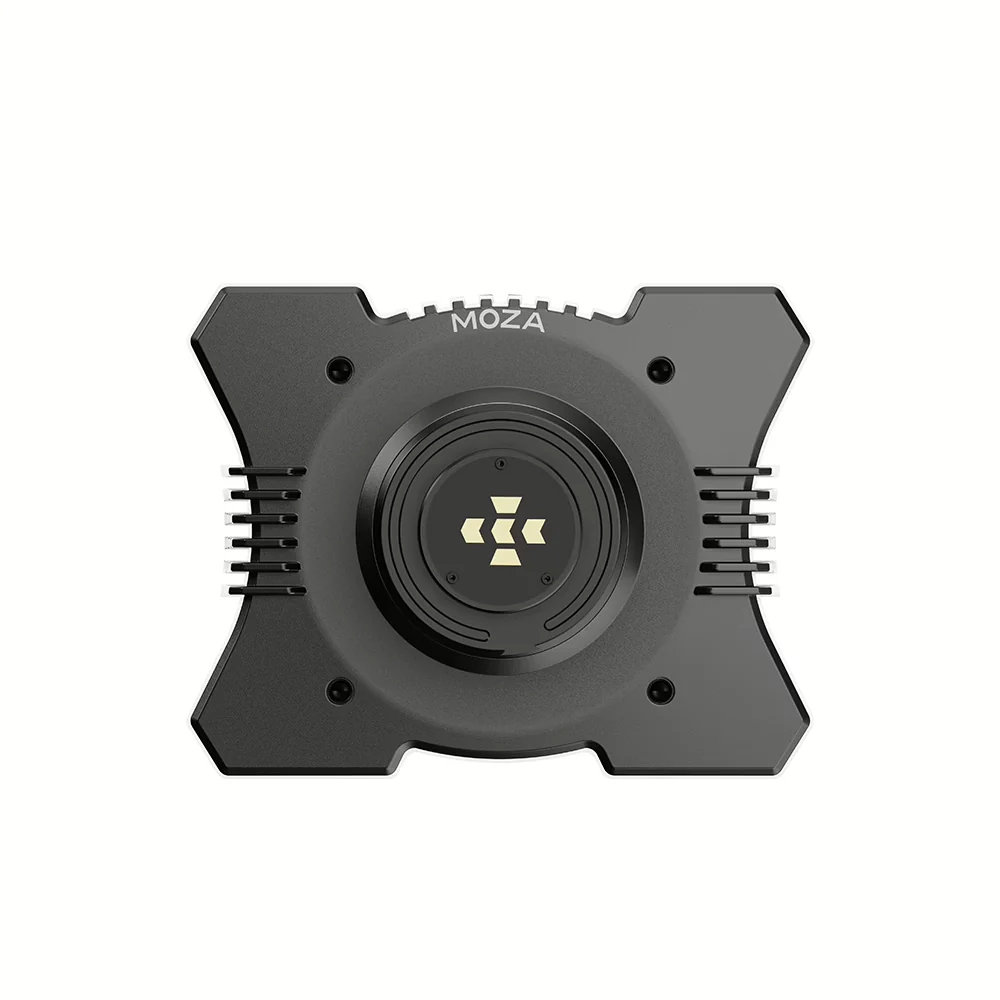

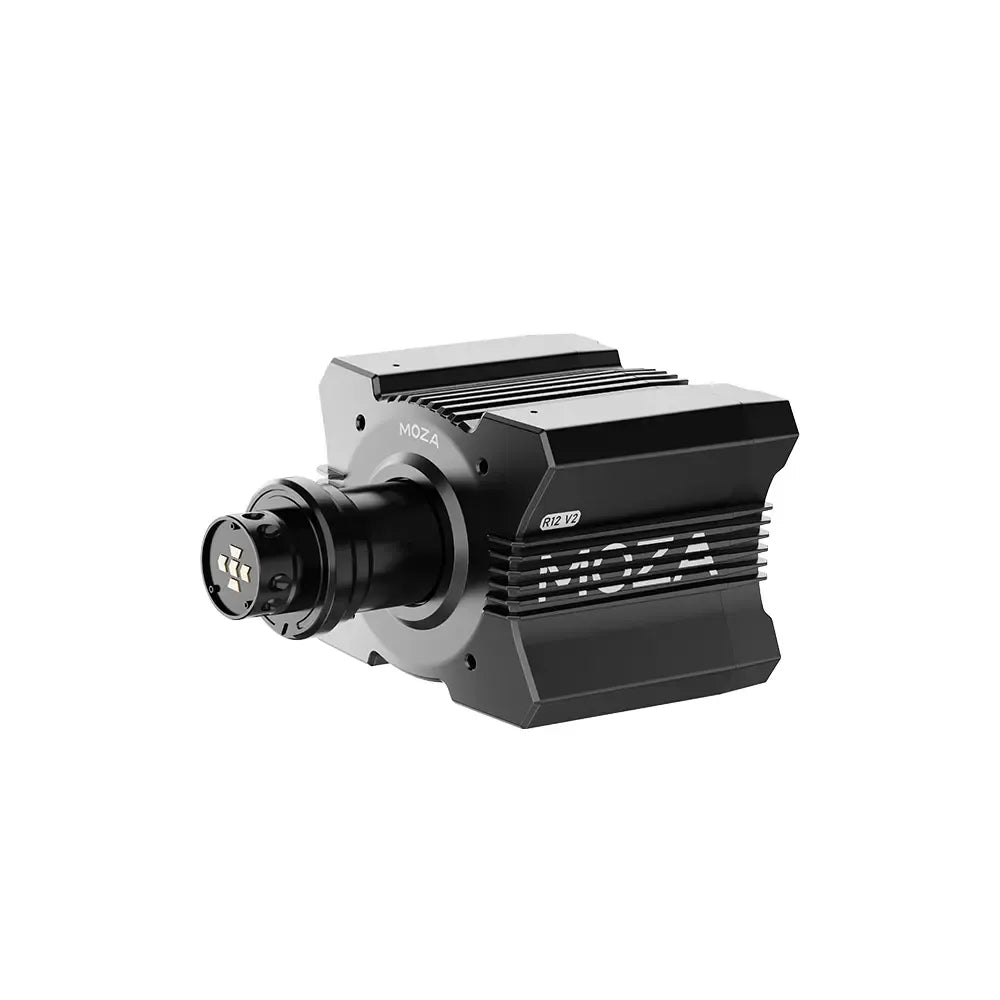

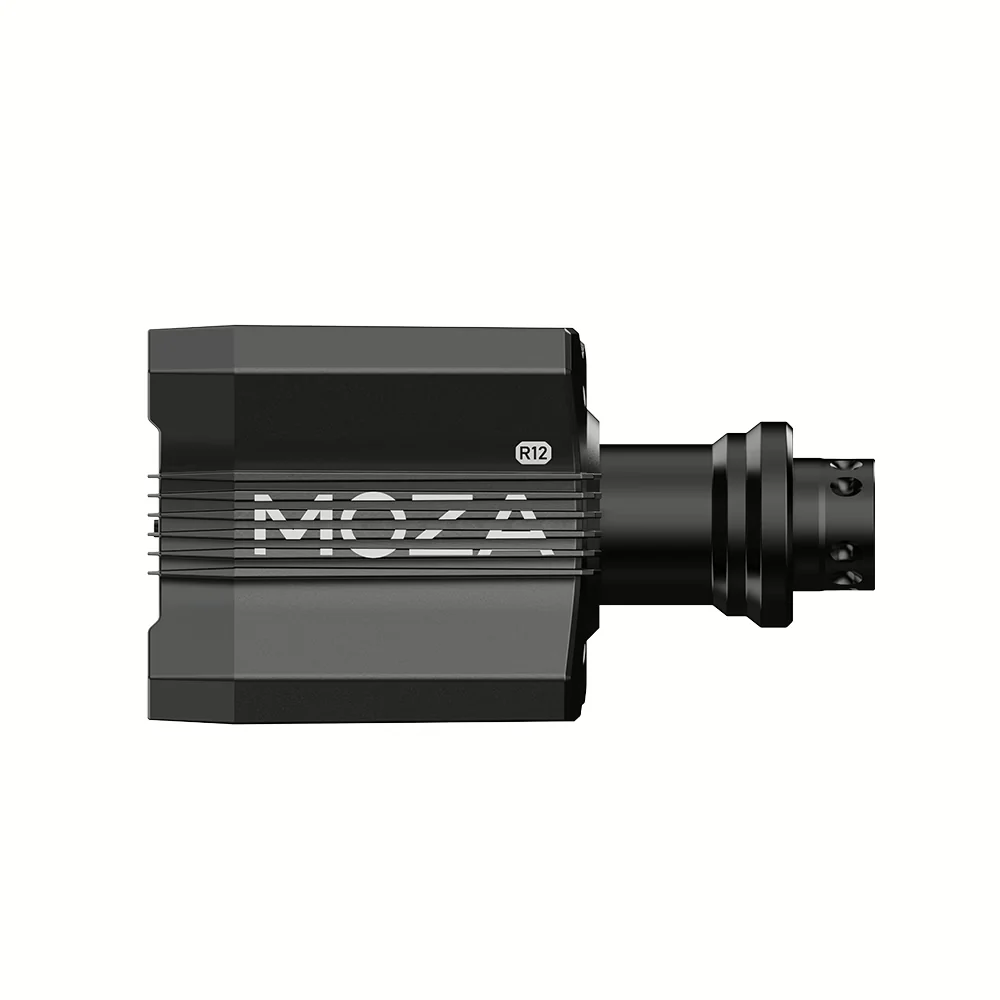

The MOZA R12 V2 is a 12Nm direct drive wheel base for professional sim racing. Featuring a high-torque servo motor, low-cogging skewed-pole design, and the NexGen 4.0 force feedback algorithm, it delivers smooth, precise, and immersive driving. Built from aerospace-grade aluminum alloy with active cooling and full software integration, the R12 V2 offers top-tier performance and reliability for competitive racers.
SPECS
| Feature | Details |
|---|---|
| Platform | PC |
| FFB Drive System | Direct Drive |
| Max Wheel Rotation | Limitless |
| Housing Material | Aviation Grade Aluminum Alloy |
| Housing Color | Black |
| Peak Torque | 12 N·m |
| Peak Power | 216W |
| Input Voltage | 110V~220V AC → 36V DC |
| USB Refresh Rate | 1000Hz |
| App Functions | Supported |
| Quick Release | Supported |

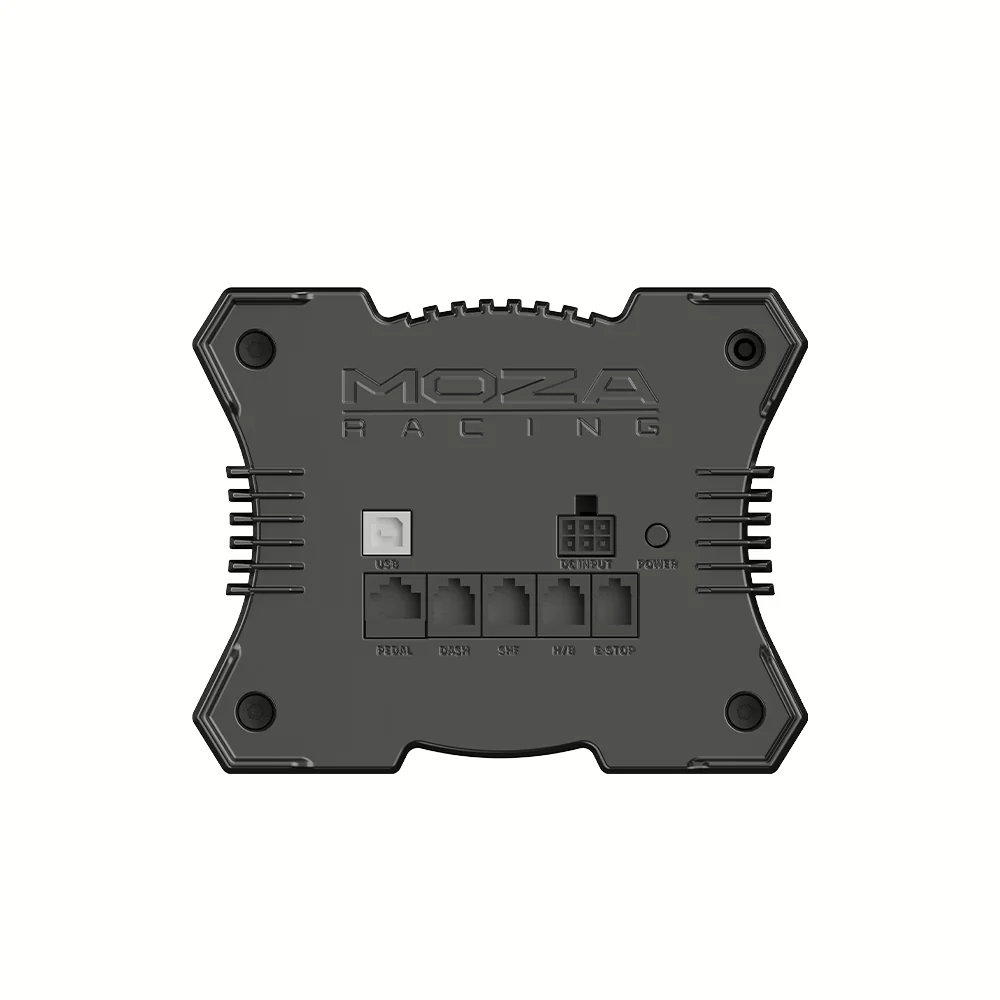

| Connection Ports | Power, USB, Pedal, Dash, Shifter, Handbrake, E-stop |
| Accessories | User Manual, Power Adapter, Cable, Tool Kit |
| Fixing Method | 4-hole Bottom Mount |
| Desk Clamp | Optional |
| E-stop | Optional |
| Online Firmware Update | Supported |
| Weight | 7.5 kg |
| Dimensions (L × W × H) | 225.87 × 156.68 × 123.99 mm |
- MOZA R12 DD Wheel Base × 1
- Power Adapter
- Data Cable
- Tool Kit
- User Manual
- Warranty Card
- MOZA Stickers
FAQs
While both feature the same NexGen 4.0 force feedback algorithm, 21-bit encoder, and servo motor technology, the R12 V2 offers a more compact and accessible package with 12Nm torque—sufficient for most sim racing needs. The R16 V2 is best for those who demand even higher force output and peak realism under extreme driving conditions.
Yes. Beginners can benefit from preloaded game-specific profiles and plug-and-play ease via the MOZA Pit House software, while advanced users enjoy 19-point force feedback customization, smart road feel equalizer, and dynamic FFB curves to tailor every detail of their driving experience.
The R12 V2 supports a wide range of racing titles on PC, including iRacing, Assetto Corsa (and Competizione), F1 series, Dirt Rally, Automobilista 2, Project CARS series, Euro/American Truck Simulator, and many more. Please refer to the full compatibility list for specifics.
Yes. With the MOZA mobile app, you can fine-tune force feedback, pedal settings, and more on-the-fly—without leaving the game. It also supports one-click profile transfers across devices for a seamless setup experience.
Yes. The R12 V2 includes Hand-off Protection to detect when your hands leave the wheel, quickly stopping oscillations and centering the wheel to prevent injury. An advanced Mode 2 also ensures safety without interrupting drifting and high-dynamic maneuvers.
