MOZA R9 V3 Direct Drive Wheel Base
Couldn't load pickup availability
Description
The MOZA R9 is the wheelbase for the racers that want to take it seriously. This cutting-edge product offers 9 Nm of torque from a direct-drive servo motor, ensuring unparalleled performance. Crafted with aviation-grade aluminum alloy, it combines minimum weight with maximum torque. With wireless power and communication, smart temperature control, and easy assembly, it’s a breeze to use. Experience control like never before with the MOZA Pit House Control Center and enjoy seamless operation through the APP Cloud Control.
SPECS
| Feature | Details |
|---|---|
| Platform | PC |
| FFB Drive System | Direct Drive |
| Max Wheel Rotation | Limitless |
| Peak Torque | 9 N·m |
| Peak Power | 180W |
| Input Voltage | 110V~220V AC → 36V DC |
| USB Refresh Rate | 1000Hz |
| Wheel Base Indicator Light | Supported |
| App Functionality | Supported (MOZA Pit House & MOZA Mobile App) |
| Quick Release | MOZA Quick Release |

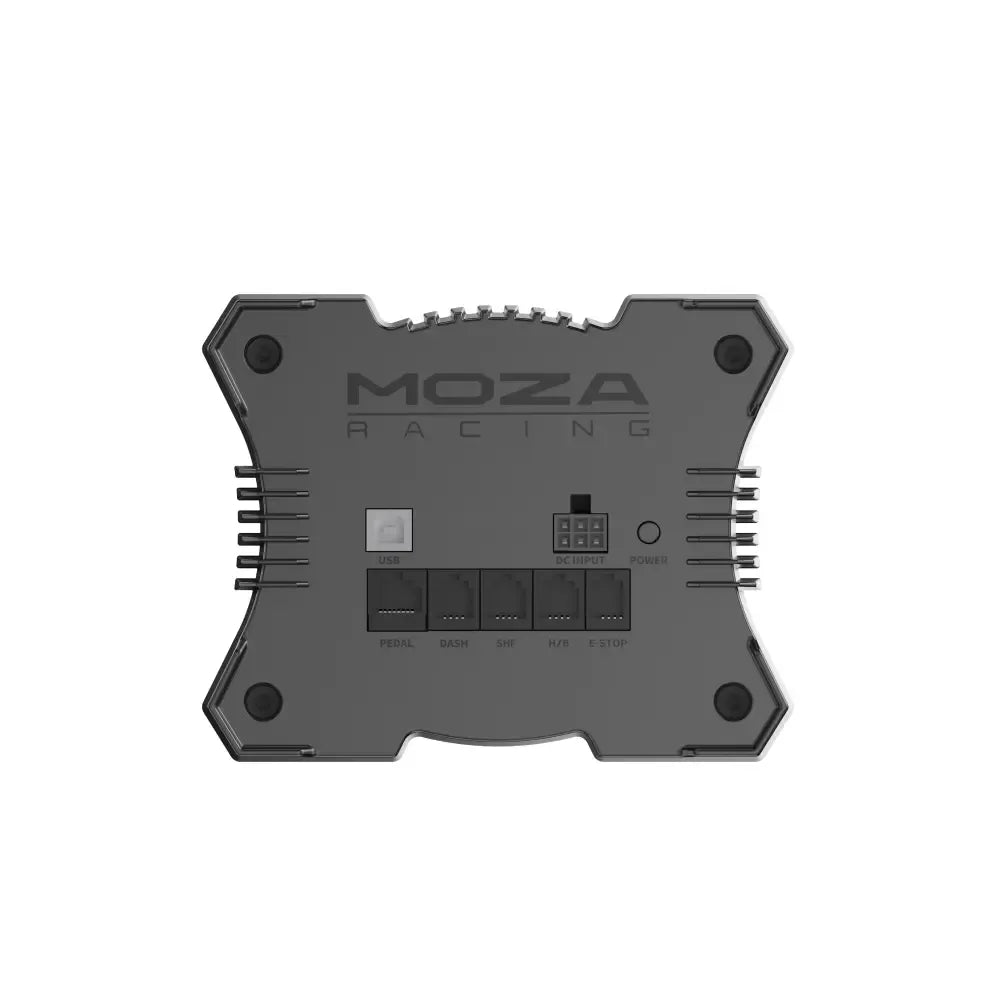

| Connection Ports | Power, DC Input, Pedals, E-stop, USB, Dash, Shifter, Handbrake |
| Firmware Updating | Applicable |
| Temperature Control System | Intelligent Temperature Monitoring & Active Cooling |
| Encoder | 21-bit Magnetic Encoder (2,097,152 steps per revolution) |
| Motor Type | High-performance Servo Motor (18-Slot / 16-Pole Configuration) |
| Housing Material | Aviation Grade Aluminum Alloy |
| Color | Black |
| Mounting | 4-hole bottom mount; optional table clamp and side mounting supported |
| Table Clamp | Optional |
| Side Mounting | Optional |
| Emergency Stop Switch | Optional |
| Size (L × W × H) | 240 × 157 × 124 mm |
| Accessories | User Manual, Warranty Card, Power Supply, USB Cable, Toolkit |
- R9 V3 DD Wheelbase × 1
- Power Supply
- Toolkit
- USB Cable
- User Manual
- Warranty Card
FAQs
The R9 V3 is compatible with all MOZA Racing steering wheels, including:
- MOZA GS V2P / GS GT
- MOZA FSR / FSR2
- MOZA KS
- MOZA CS V2
- MOZA RS V2
- MOZA ESX
- And future MOZA universal wheels
We are always asked if it is possible to use Fanatec and Thrustmaster, or other brands of wheels, pedals, shifters, and other accessories with MOZA Racing. Often, devices from different vendors are not compatible with each other. So you can’t directly connect products from different companies to each other, or at least not support that way.
There may be adapters on the market that make this combination possible, but due to the different technologies used in the hardware and different signal tolerances, these solutions are unreliable even with similar specs. MOZA Racing cannot make any representations regarding third-party adapters or similar solutions. Of course, we are striving to achieve the highest possible incompatibility between all devices, although this is not easy to achieve. For any compatibility issues, we can only direct you to the information provided on our product pages or FAQs.
Yes. The compact design of the R9 V3 makes it ideal for desk users. It supports desk clamps and mount adapters, allowing for flexible installation on various setups.
The R9 V3 delivers a maximum torque of 9 Nm, making it well-suited for a wide range of racing sims—including F1, GT, rally, and street racing games.
Yes. The R9 V3 is fully compatible with the MOZA Racing ecosystem, including pedals, shifters, dash displays, and more. All devices can be configured through the MOZA Pit House software.
