Description

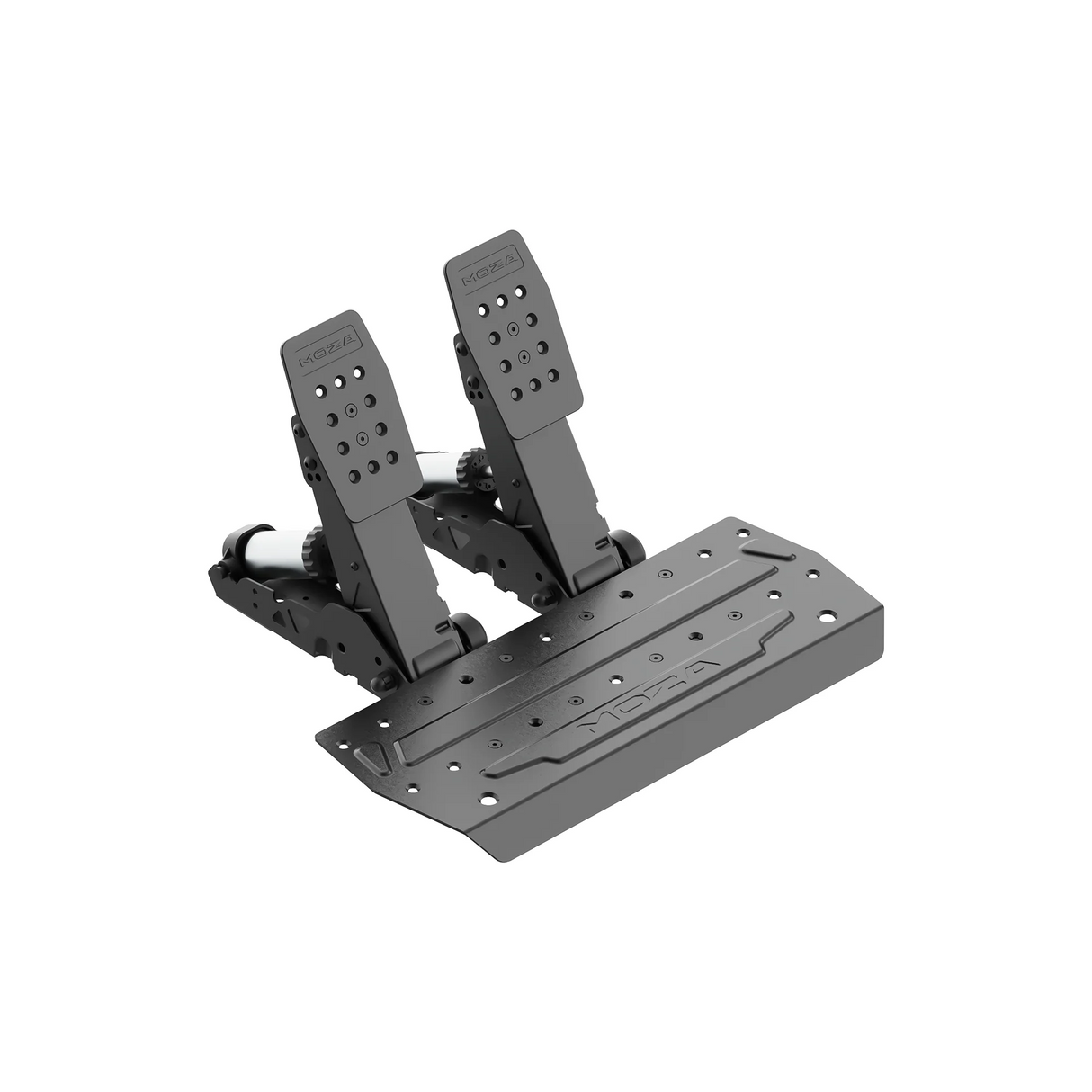

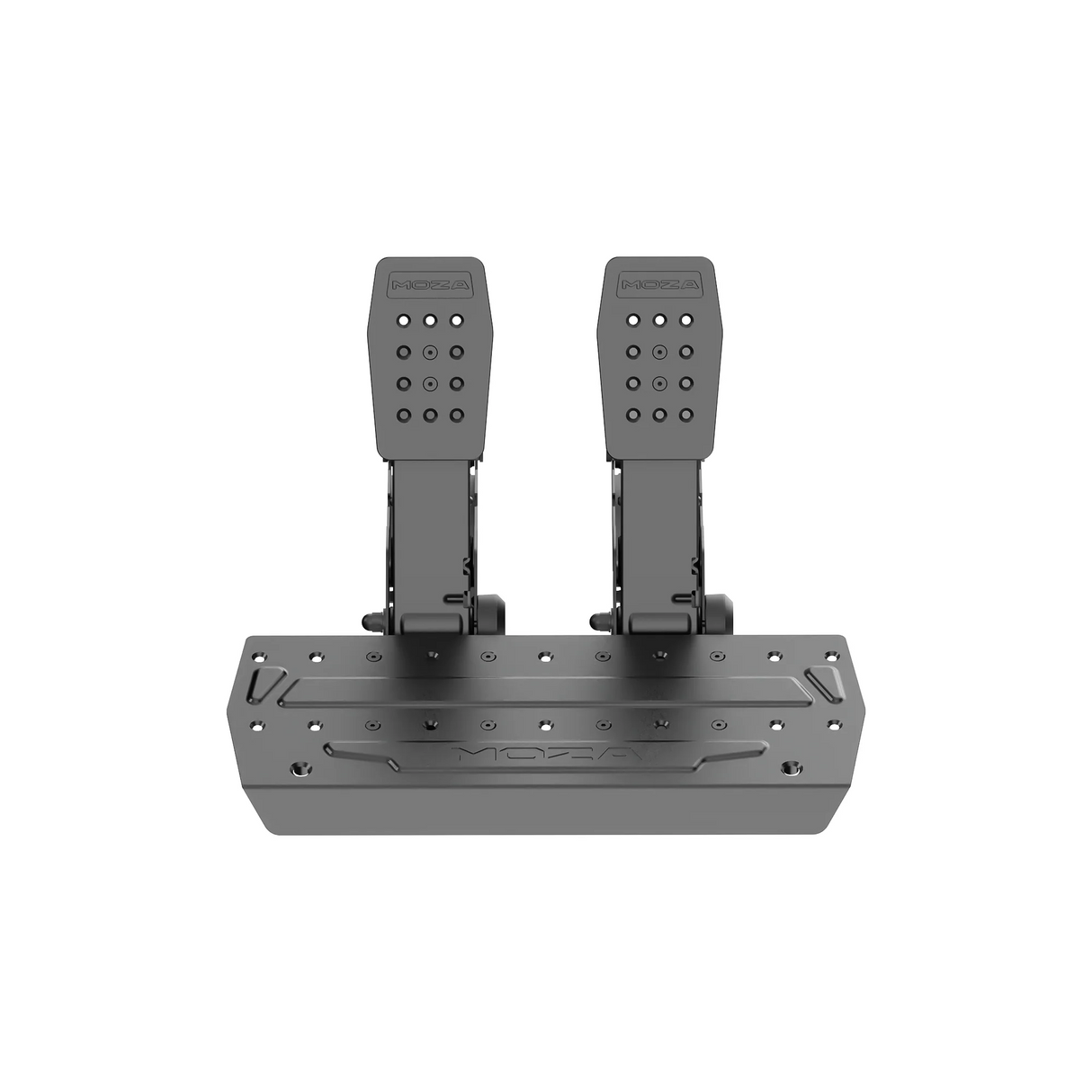

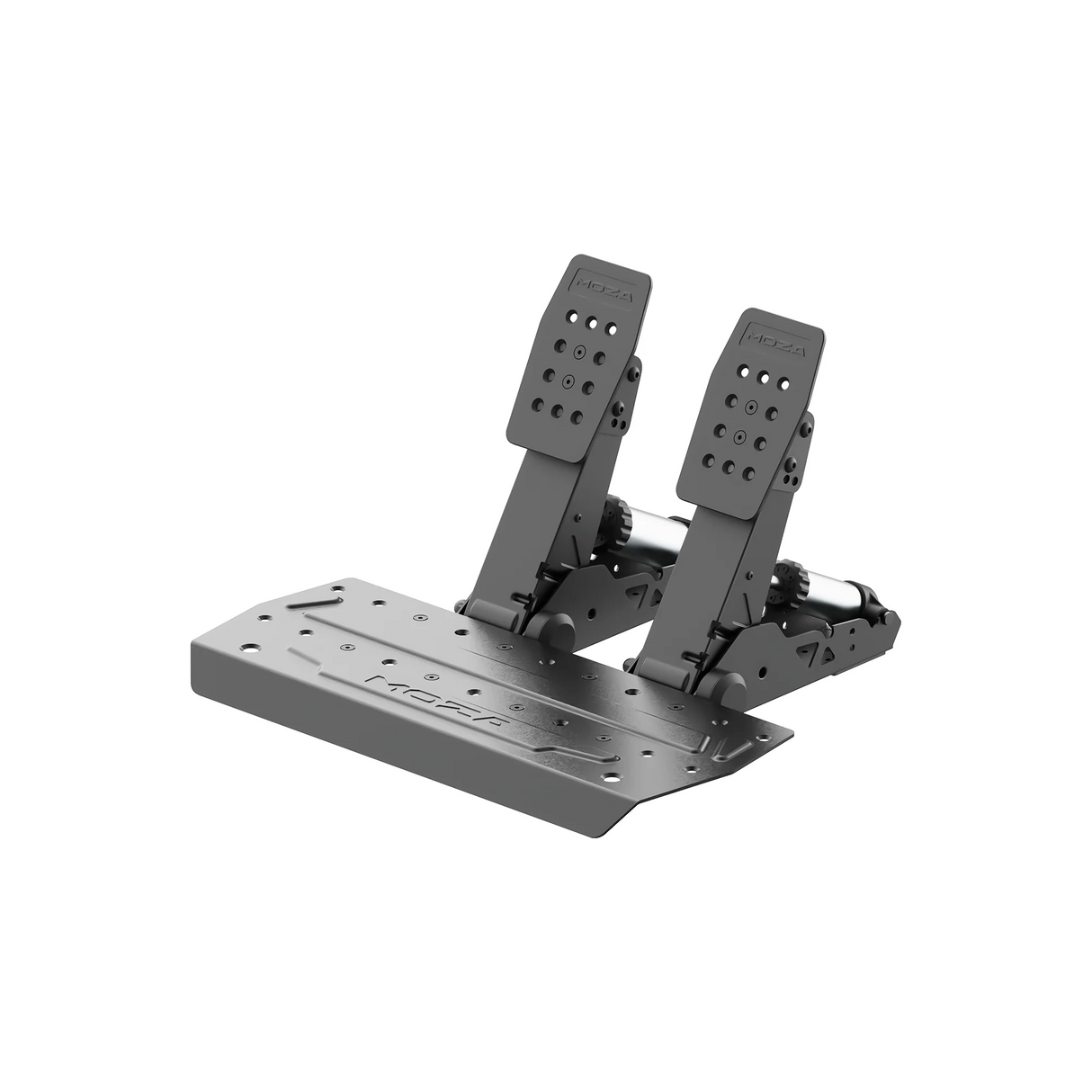

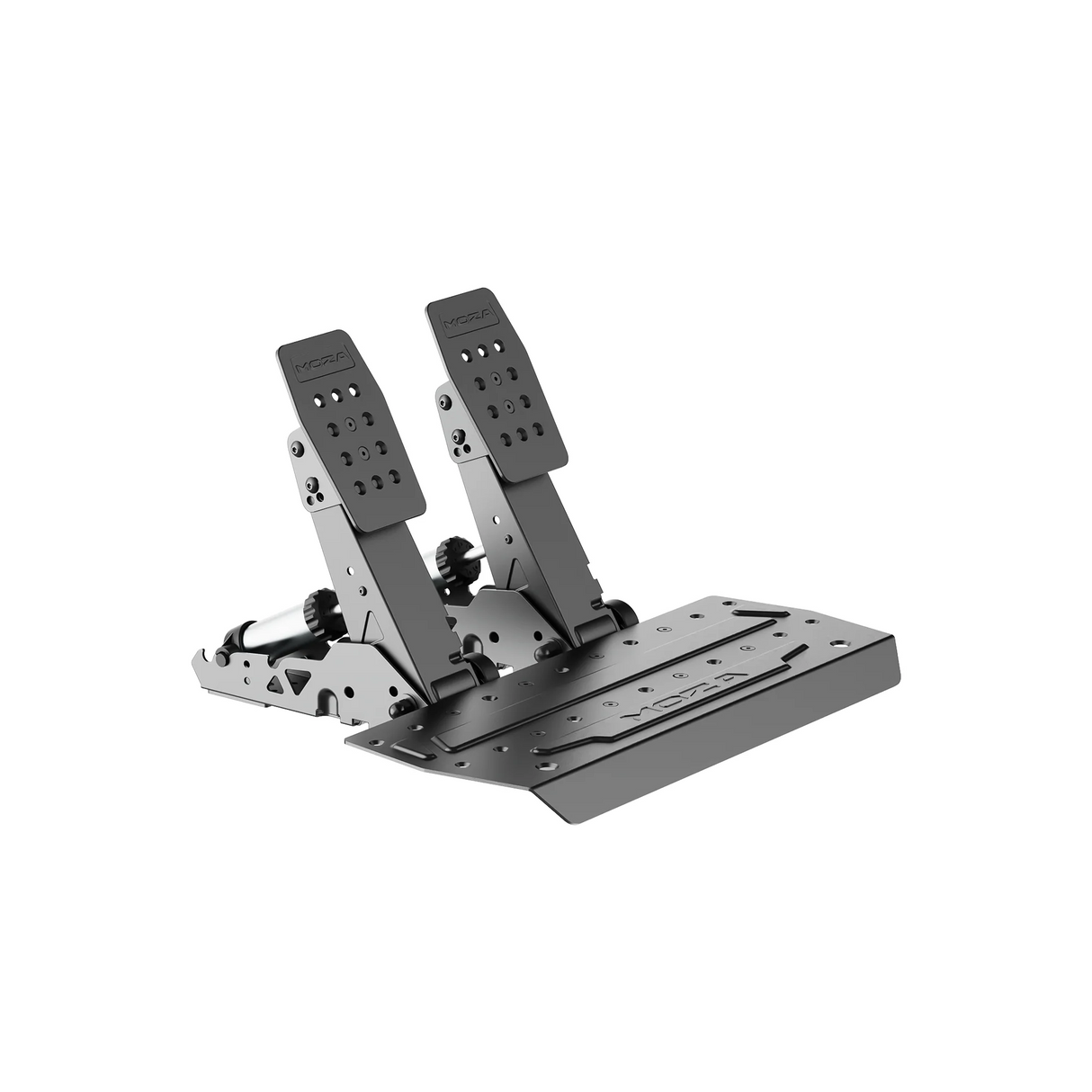

Precision-engineered MOZA SRP2 Dual Pedals feature CNC aerospace-grade aluminum and high-strength steel for durable, professional-grade performance. Equipped with a 100KG load cell and 15-bit angle sensor with fusion technology, the SRP2 delivers accurate, responsive brake input. Fully adjustable pedal angle, spacing, and height, combined with tool-free tuning and optional Performance Kit for 1,000+ brake feel configurations, ensure a customizable and immersive sim racing experience. Compatible with PC and Xbox.
Specifications
Pedal Material: High-strength Steel
Base Material: High-strength Steel
Load Cell Range: 0–100 kg
Brake Sensing Method: Hybrid Load Cell and Angle Sensor
Angle Sensor Resolution: 15-bit (32,768 PPR)
Brake Feel Adjustability: Supported
Throttle Adjustability: 2-step preload adjustment
Clutch Adjustability: 2-step preload adjustment
Pedal Angle Adjustment Range: 10° / 25°
Pedal Left/Right Adjustment Range: 15 mm
Pedal Height Adjustment Range: 36 mm
Pedal Curve Adjustment: Supported
Real-time Pedal Output Display: Supported
Brake Pressure Engagement Point Adjustment: Supported
What’s in the Box
- MOZA SRP2 Pedals (Throttle + Brake) × 1
- Toolkit
- Warranty Card
FAQs
The SRP2 brake pedal features a 15-bit angle sensor combined with a 100KG load cell and a fusion algorithm. This allows smoother initial travel with the angle sensor and stronger braking input with the load cell, closely mimicking a real car.
Yes. The SRP2 pedals connect directly to a PC via USB and are compatible with all major sim racing brands—not just MOZA.
No. They can be mounted to a cockpit or used on the floor. Anti-slip pads help reduce movement, and an optional wall bracket can be added for extra stability.
Yes. The pedals support preload adjustment and include elastomer springs for multiple configurations. With the optional Performance Kit, you can achieve over 1,000 brake feel combinations.
Use MOZA Pit House software to adjust pedal curves, sensitivity, and calibration settings.
Backorder Item
This product is currently out of stock, but you can still order it. We’ll ship it as soon as stock arrives.
