Next Level Racing® Elite 160 DD Side and Front Mount Adaptor

LEADING FEATURES
- SUPPORT FOR FORMULA, GT, HYBRID, TRUCK AND TANK DRIVING POSITIONS
- PREMIUM ANODISED CNC MACHINED 6061 ALUMINIUM BRACKETS AND SPACERS
- PRECISION FOLDED HIGH-QUALITY POWDER COATED CARBON STEEL PARTS
- SUPPORTS MAJOR BRANDS OF DIRECT DRIVE WHEELBASES
- MAXIMUM VERSATILITY WITH HEIGHT, WIDTH AND TILT ADJUSTMENT OPTIONS FOR THE PERFECT STEERING POSITION
- 6MM FRONT MOUNT PLATE WITH MOUNTING SLOTS ALLOWING COMPATIBILITY WITH A WIDE RANGE OF FRONT MOUNT WHEELS ON THE MARKET.
- HARDWARE FOR MOUNTING PERIPHERALS INCLUDED

ABOUT

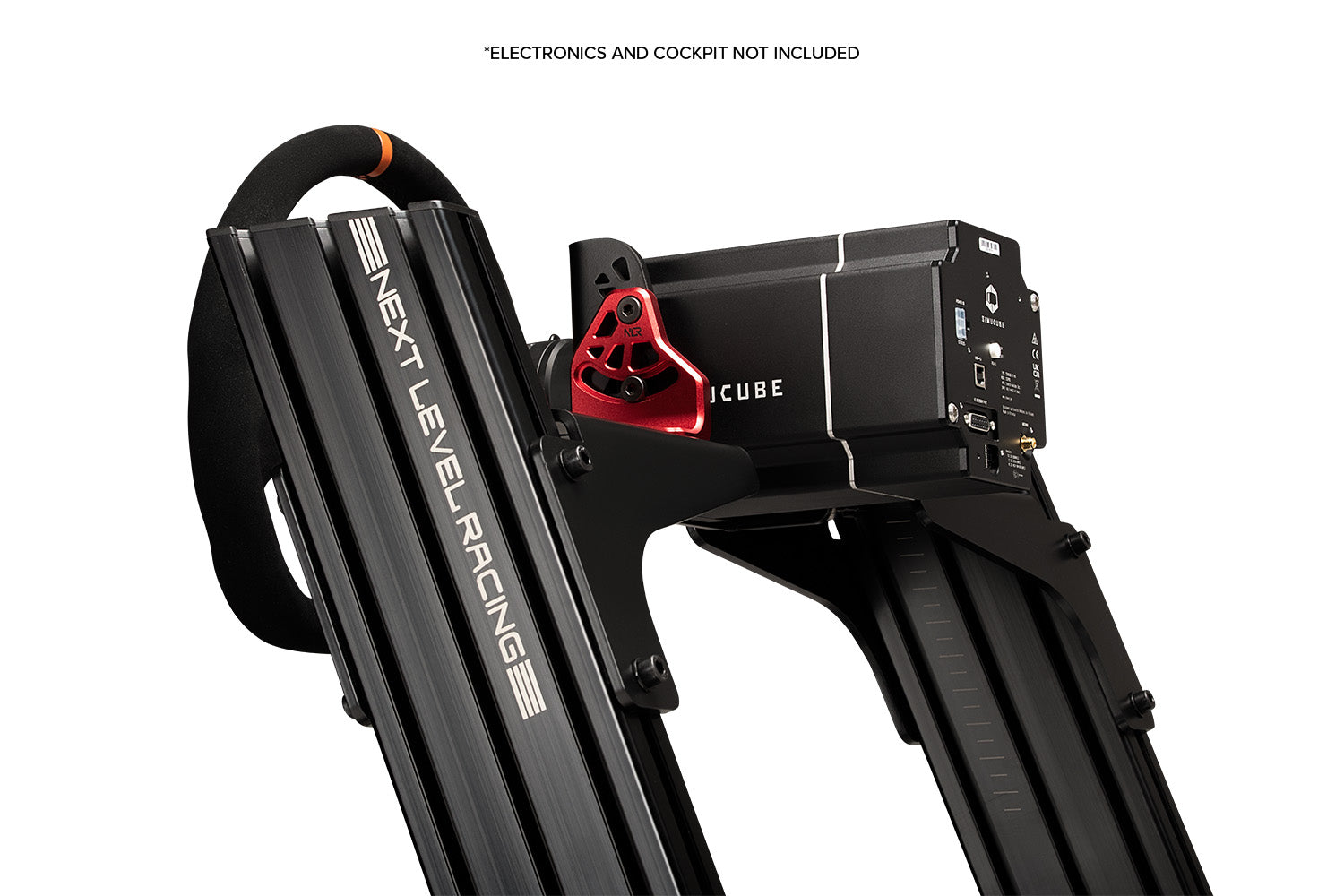

The Next Level Racing® Elite 160 DD Side and Front Mount Adapter is the perfect upgrade for the F-GT Elite 160 Series cockpits, enabling sim racers to front or side mount all major Direct Drive wheelbases. Assembled from premium components, the Elite 160 DD Side and Front Mount Adapter is the perfect solution for a wide variety of steering wheel mount configurations.

HIGHLY ADJUSTABLE

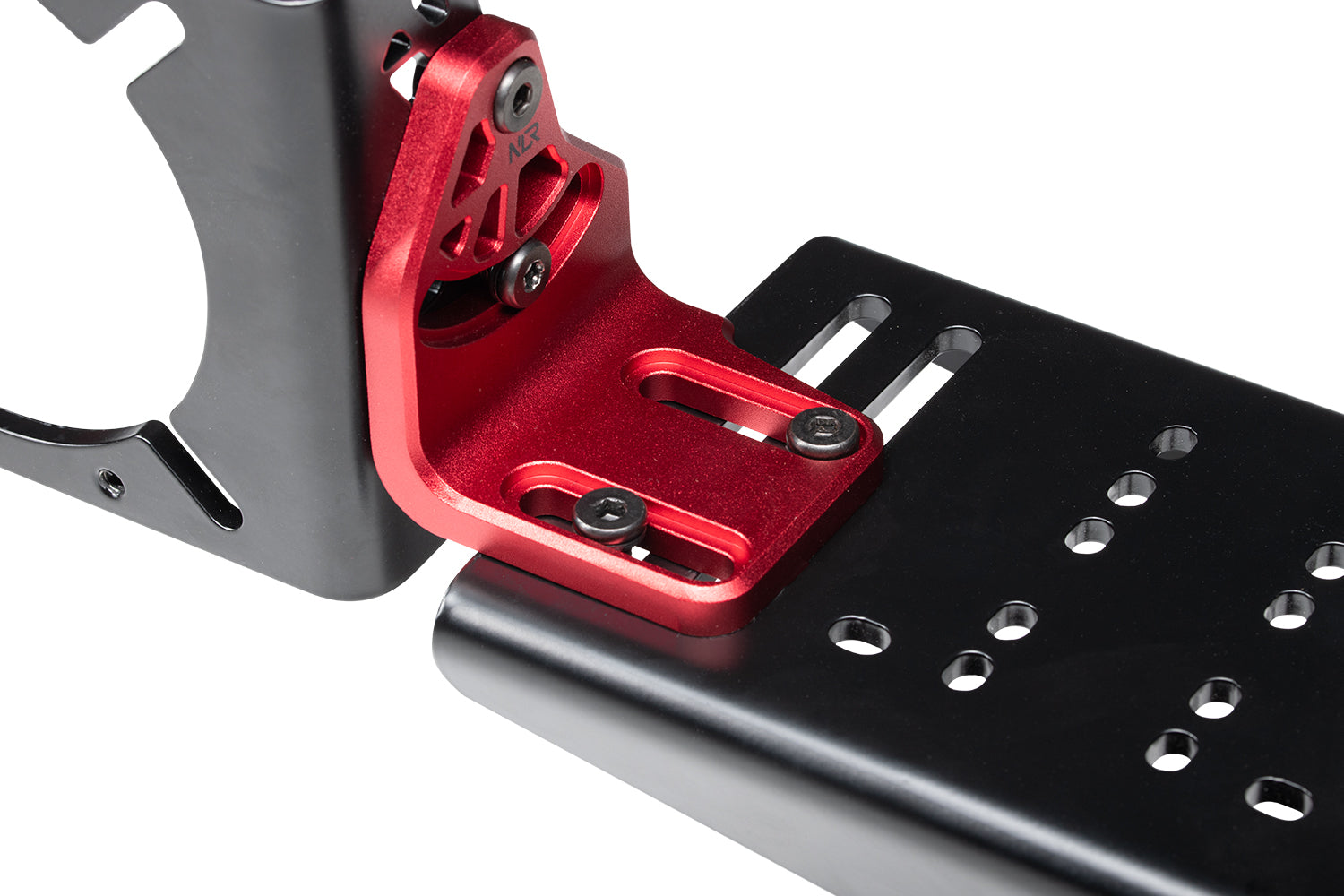

The Next Level Racing® Elite 160 DD Side and Front Mount Adapter features the full spectrum and ease of increased adjustability with 70 degrees of tilt (40 degrees downward and 30 degrees upward tilt), as well as height and horizontal adjustments.

INDUSTRY-LEADING QUALITY & MATERIALS
The anodised finish of the 6061 aluminium and high-quality powder-coated carbon steel construction not only offers unmatched rigidity for zero flex, but also boasts quality standards for the perfectionist sim racer. A perfect upgrade for front mount direct drive wheelbase users

FULL COMPATIBILITY
The Next Level Racing Elite 160 DD Side and Front Mount Adapter have been designed to be compatible and rigid to support leading Direct Drive wheelbase brands with uncompromised strength. Supported Direct Drive wheelbases below:
Fanatec DD1/DD2 podium direct drive
Simucube 2 Pro /Simucube 2 Sport/Simucube 2 Ultimate
Simagic Alpha/M10
Mige 130 motors
VRS Directforce Pro
Kollmorgen akm 52-53-54 (OSW and Leo Bodnar Simsteering systems)

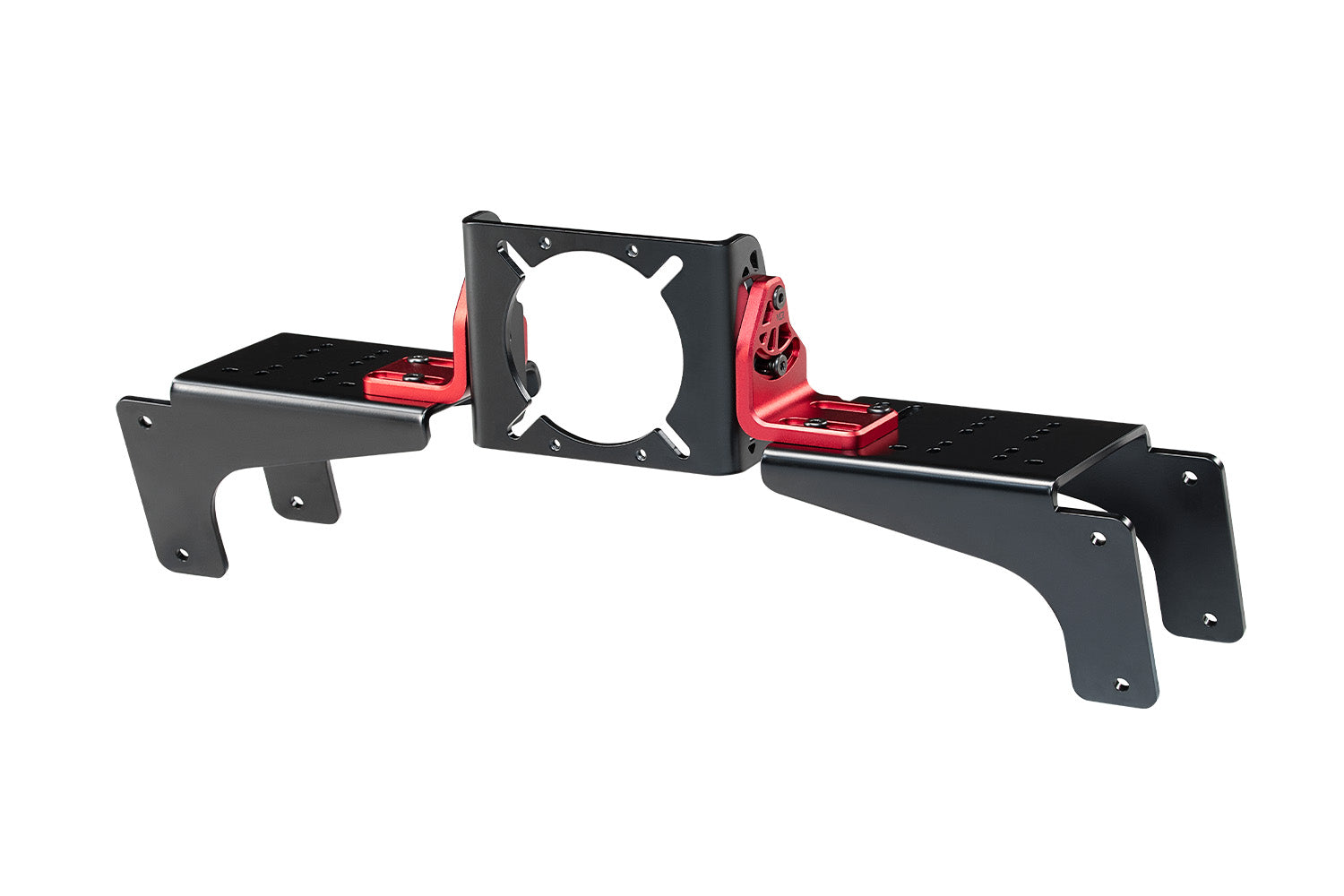

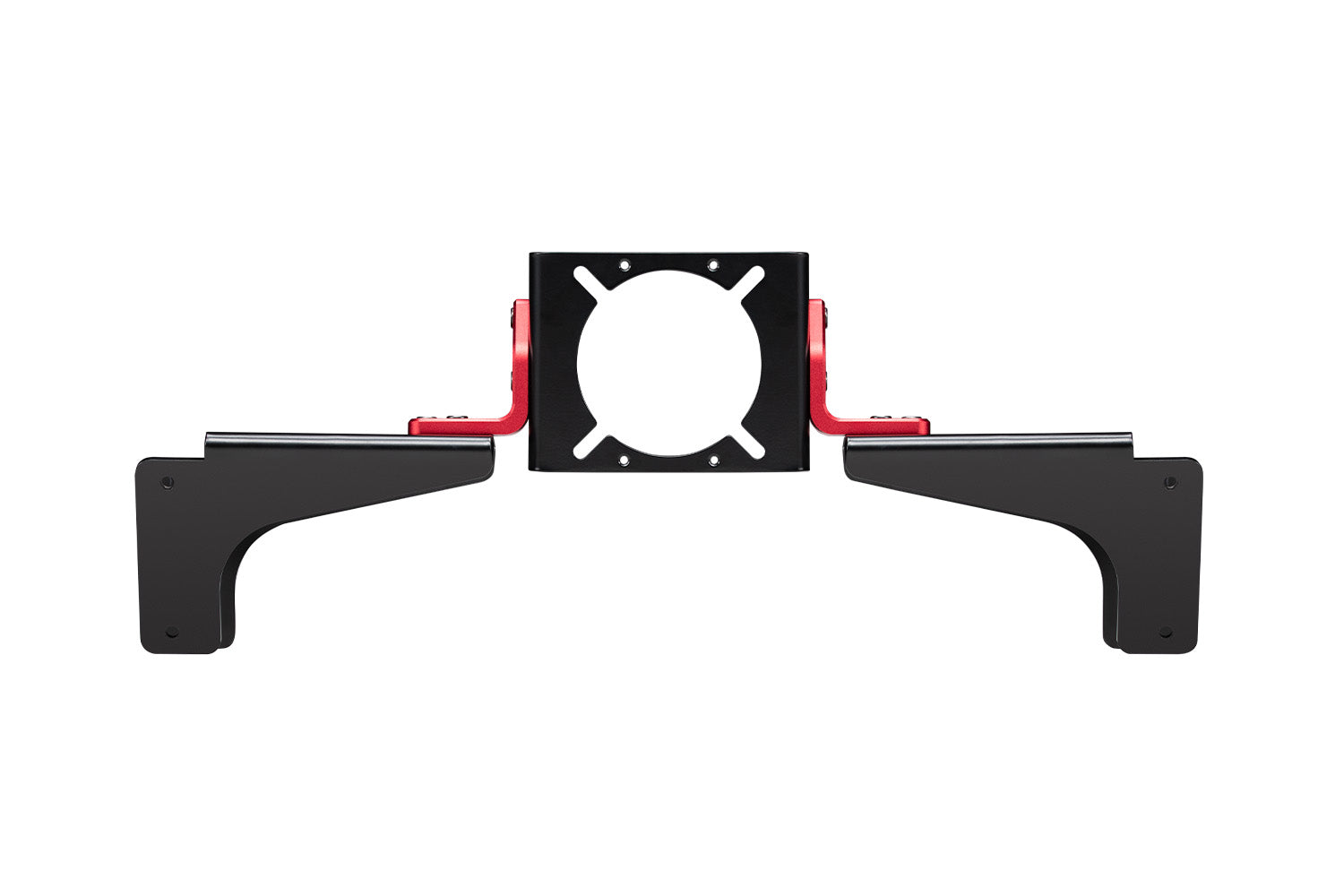

WHAT’S IN THE BOX

• Next Level Racing® Front Mount Bracket
• Next Level Racing® Side Mount Brackets
• Next Level Racing® Spacer Plates
• Next Level Racing® Mounting Arms
• Assembly Hardware
• Digital assembly instructions and assembly videos available here: https://bit.ly/nlr-instructions

SPECIFICATIONS

• Boxed Dimensions: 65.5 cm (L) X 25.5cm (W) X 20cm (H) 25.8inches (L) x 10 inches (W) x 7.9 inches (H)
• Product Dimensions: 64.5cm (L) x 25.4cm (W) x 18.5cm (H) 25.4 inches (L) x 10 inches (W) x 7.3 inches (H)
• Boxed Weight: GW: 8.10kg / NW: 6.49 kg
• Part Number: NLR-E042

COMPATIBLE NEXT LEVEL RACING® PRODUCTS

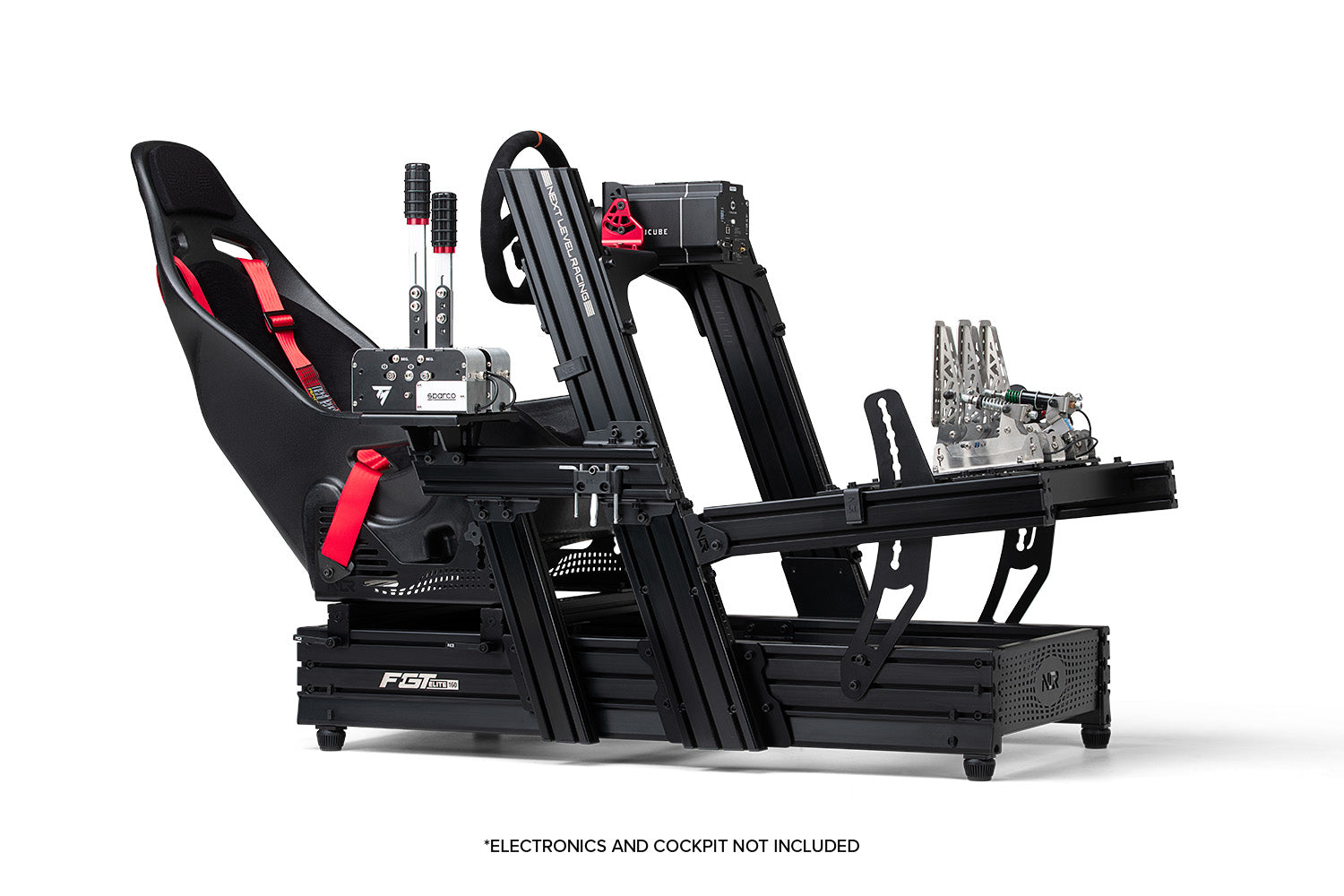

- Next Level Racing F-GT Elite 160 series cockpits
