PT Actuators - 3 DOF Scorpion Super - 4 Actuators

Demo Unit available for a test drive please contact us to book a time.

PT Actuator is proud to introduce our new family of powerful and cost-effective actuators that can easily be mounted on your existing platform.

The Scorpion S offers an additional range and acceleration speed. With a stroke of 150mm and an acceleration of up to 250mm/s you can now achieve higher degrees of movement to enhance your racing, rallying, or flying experience

The Scorpion S comes all pre-wired in a neat and sleek-looking Metal housing and comes with the Sim Racing Studio software. This also can be used with Simtools V2 but we recommend SRS.

These units come with a 3 year warranty.

Hardware List:

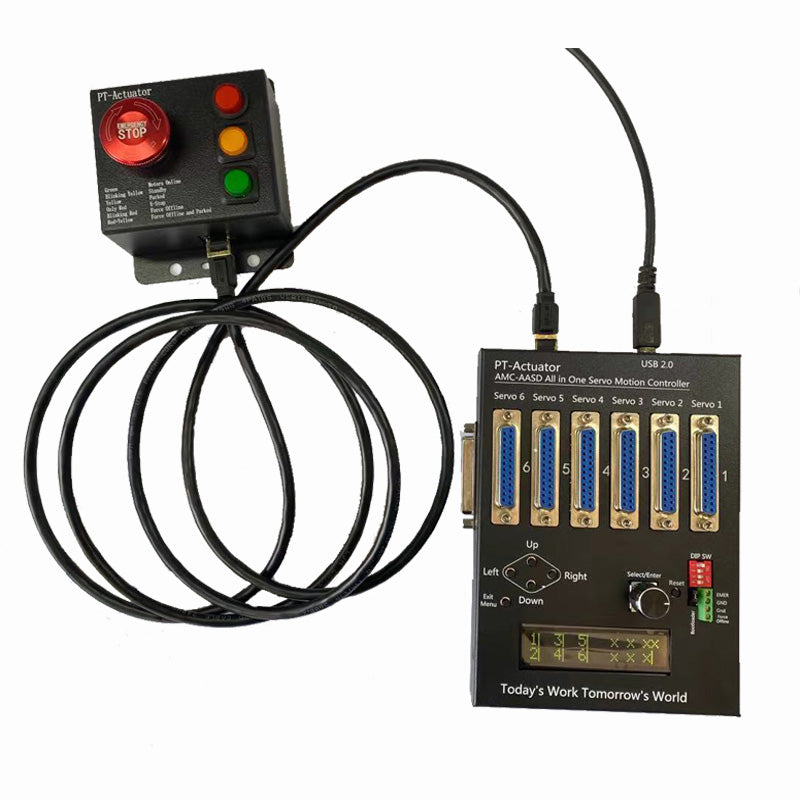

• AMC-AASD15A controller
• 4 x Shield AASD15A -PLUS Servo Driver
• 4 x Floor contact cups

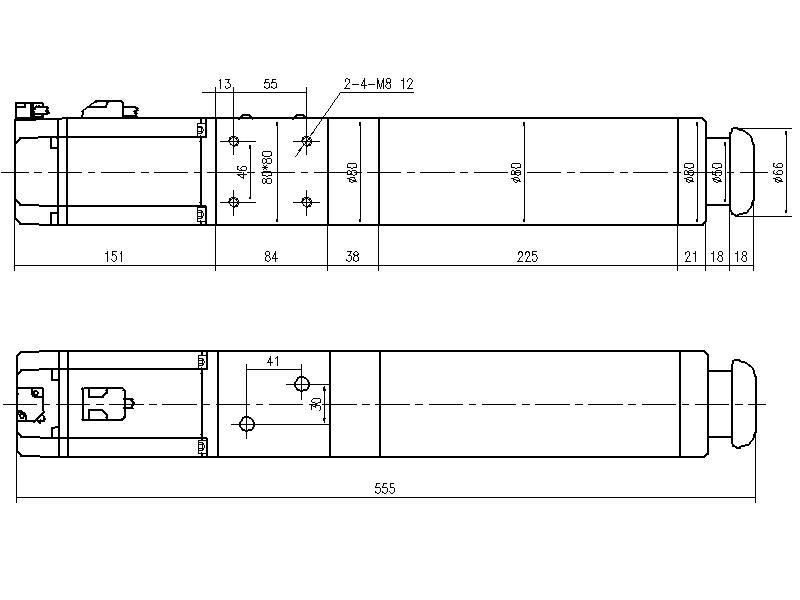

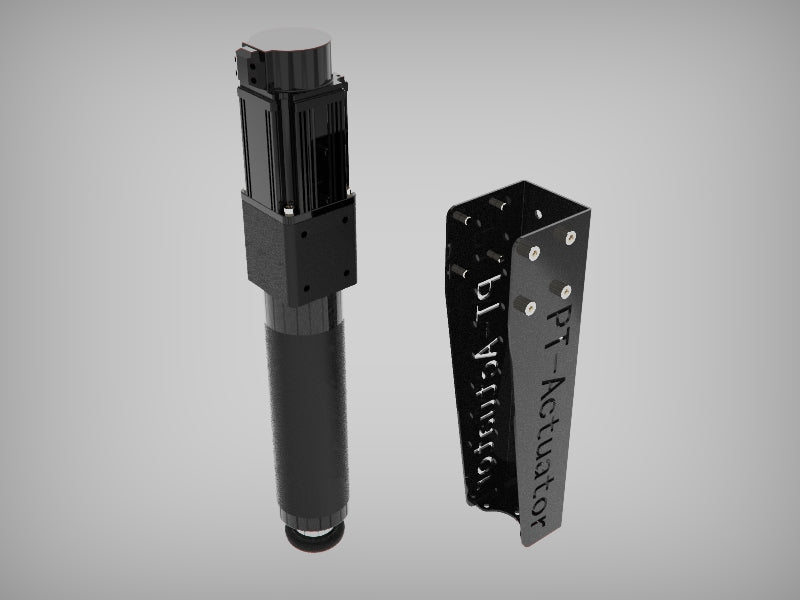

• 4 x Servo Scorpion actuators

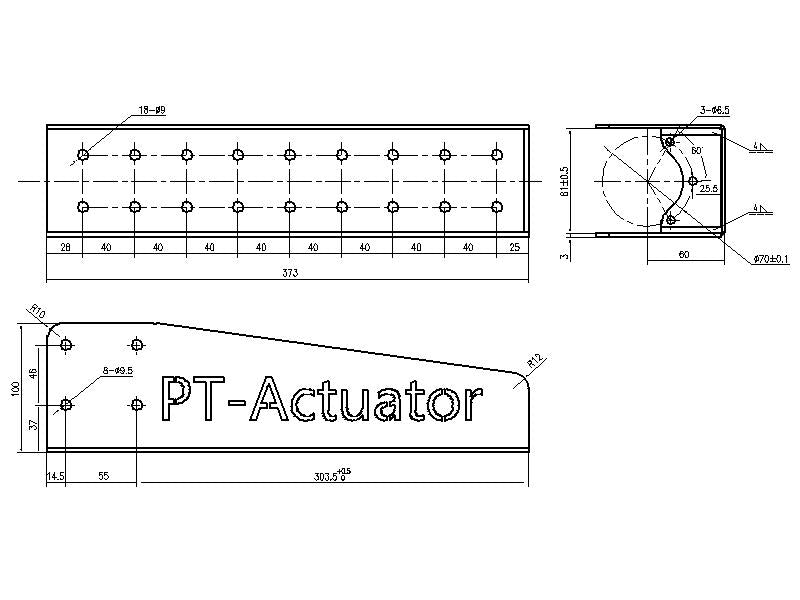

• 4 x Scorpion series U brackets
• 4x Power and encoder cables (3m Long)
• All Pre-Wired in Metal Housing
• Sim Racing Studio Software
• THE EMERGENCY STOP BUTTON IS SOLD SEPARATELY

Specs:

• Speed: 250mm/s
• Force: 200KG
• Stroke: 150mm / 5.91inches

Here is a great review from the one and only love doctor, Barry from Sim Racing Garage. "So lets get to it"
