BDH HARDWARE H1: SPECIALIZED MECHANICAL H-PATTERN SHIFTER - BLACK
Couldn't load pickup availability
Description
BDH H1: Focused Engineering for H-Pattern Enthusiasts
For drivers who prefer a dedicated H-pattern shifter, the BDH H1 offers a specialized solution. Its design prioritizes mechanical feel, component durability, and precise gear engagement, directly inspired by motorsport applications.
Back by Popular Demand
The decision to reintroduce the H1 as an upgraded version of the original “Bazooka” was significantly influenced by consistent requests and positive feedback from the sim racing community regarding the original model.
Dedicated H-Pattern Mechanism
This shifter is engineered solely for H-pattern use, ensuring all design and component choices are optimized for this specific mode of operation, providing direct and unambiguous gear selection.
Hall Effect Sensor Integration
Contactless Hall Effect sensors are now standard. This technology offers consistent input accuracy over time, as there are no mechanical contacts to wear, improving long-term reliability.
Comprehensive Lifetime Warranty
The BDH H1 is supported by a lifetime warranty covering manufacturing defects in materials and workmanship. This reflects our confidence in the product’s design, components, and assembly quality.
BDH H1 Shifter Specifications
- Dimensions: 300mm x 300mm x 80mm
- Mass: 3.5kg
- Modes: Dedicated H-Pattern
- USB Connectivity: USB-C with 2m cable
- Power: USB powered, 5V DC
- Precision-machined HE260 aerospace-grade aluminium
- Electrochemically treated with black oxide coating for enhanced durability
- High-tensile steel parts for extreme durability
- Self-lubricating bronze bushings for smooth operation
- High-quality die square section springs for consistent resistance
- Iconic Bazooka-format H-pattern with BDH proprietary design
- Crafted from high-quality alloy steel
- 8-gear gate configuration with fully customisable layout

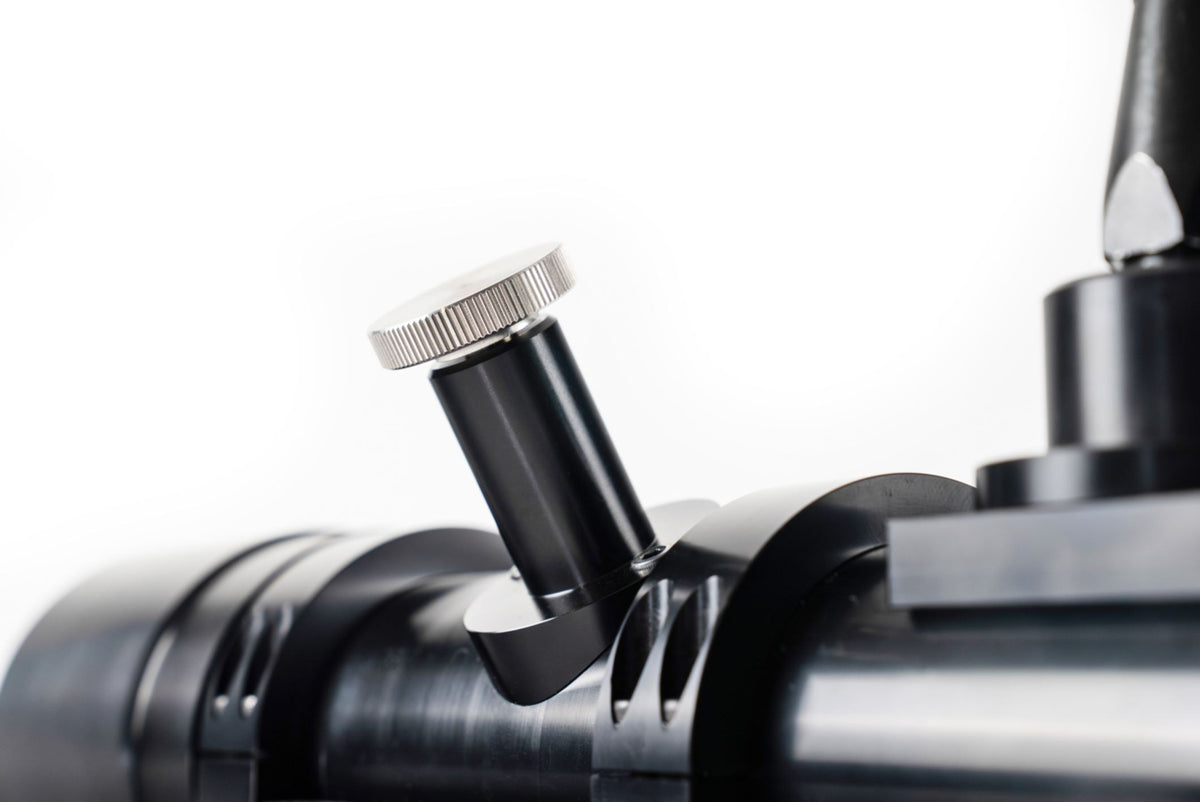

- Adjustable detent gauge with dual-locking preset
- Centralising CAM mechanism for precision gear selection
- High transmission efficiency with low noise and long service life
- Contactless BDH hall sensor technology
- Zero-latency USB interface
- Plug-and-play with all major sim racing titles
- No external power supply needed
- Built-in processor with custom BDH firmware
- Protected circuit design for long-term reliability
- 360-degree mounting capability for optimal positioning
- Standard M8*1.25 mounting points with T-nut compatibility
- Compatible with all major sim racing rigs
- Optional sandwich adapter plate available

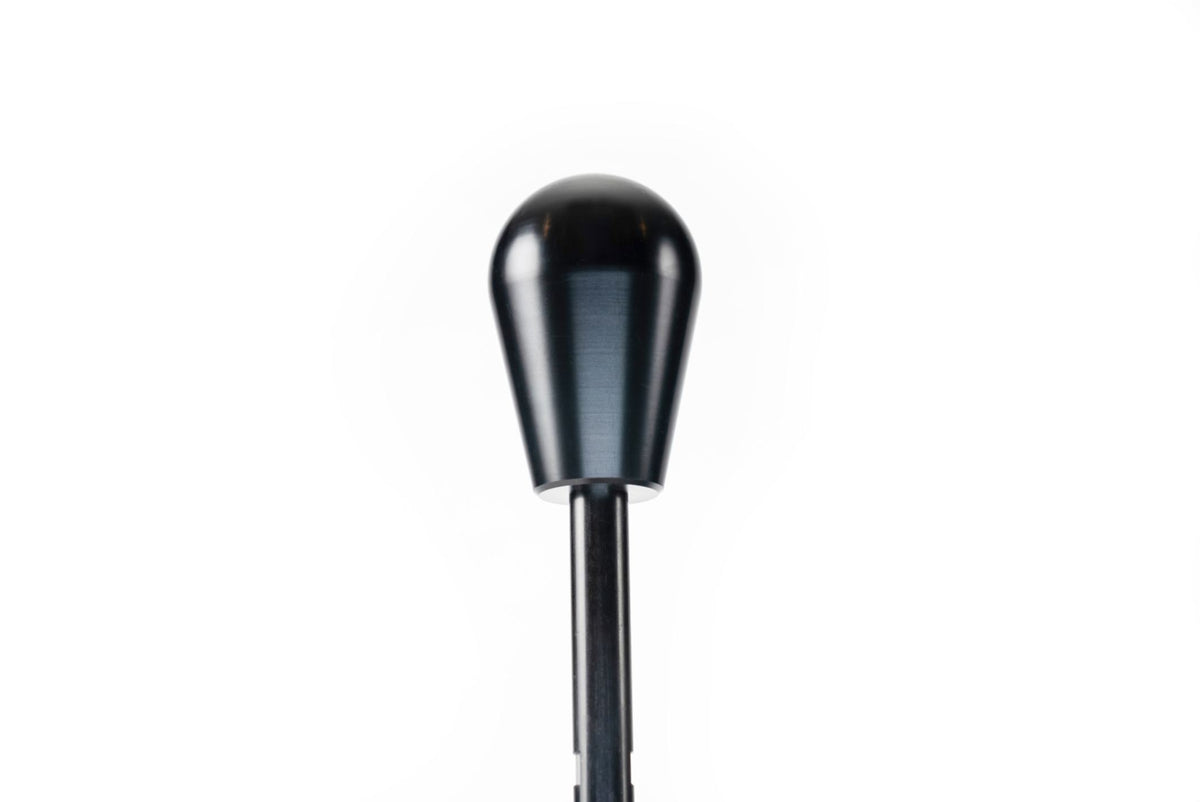

- Supports third-party gear knobs (M10x1.5 thread)
- Multiple height adjustment options
- True motorsport-grade PTFE-lined spherical bearings
- Radiused 303 wear-resistant stainless steel gate pegs
- Engineered gear gate selector with equal wear-free spinning ball detent
- Precision-made centralizing anchor point
- EN8 high carbon steel shear parts (40 tonnes strength rated)
- Graphite-enhanced self-lubricating bronze oil light guides
