15% off
MOZA | SKU:
RAMO7270858

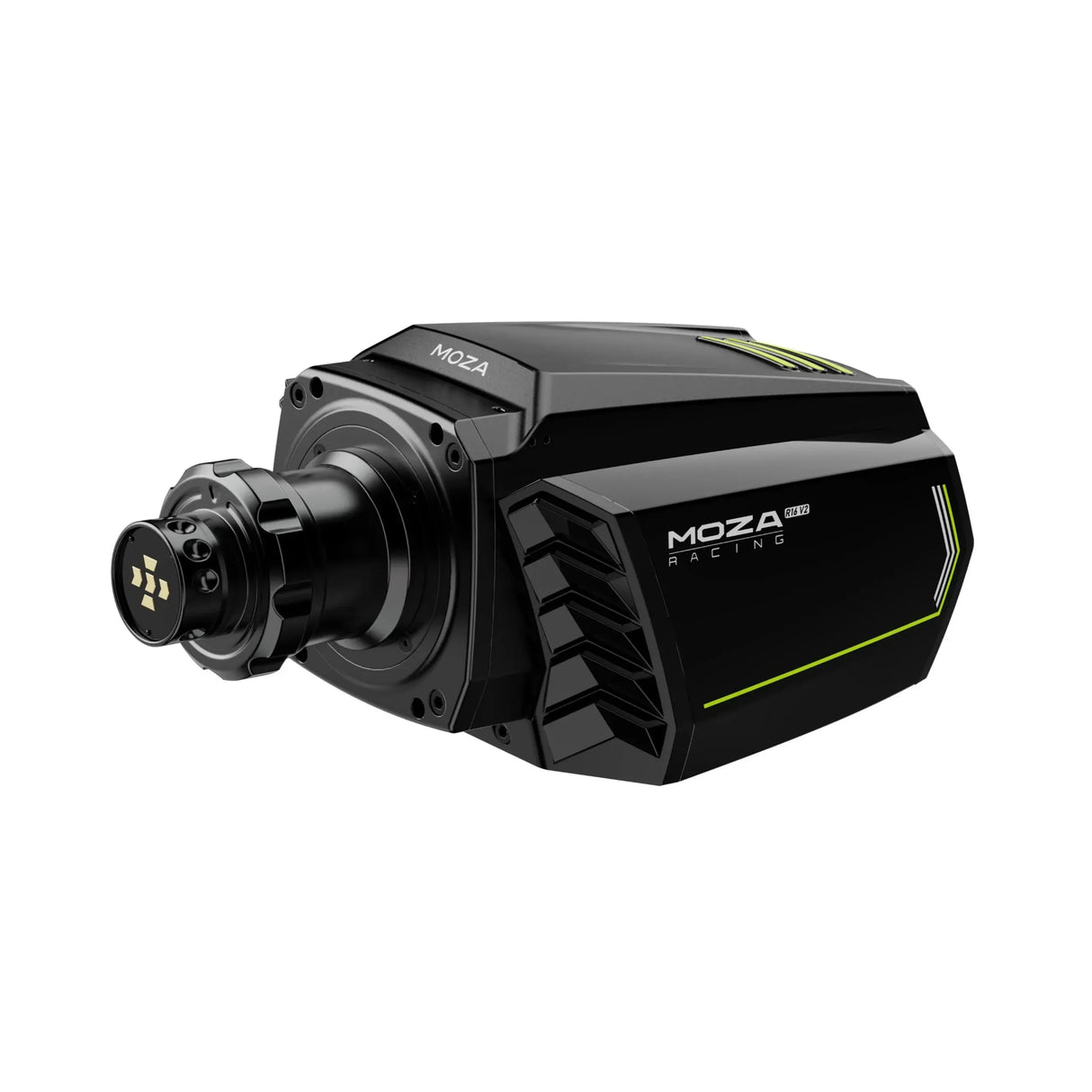

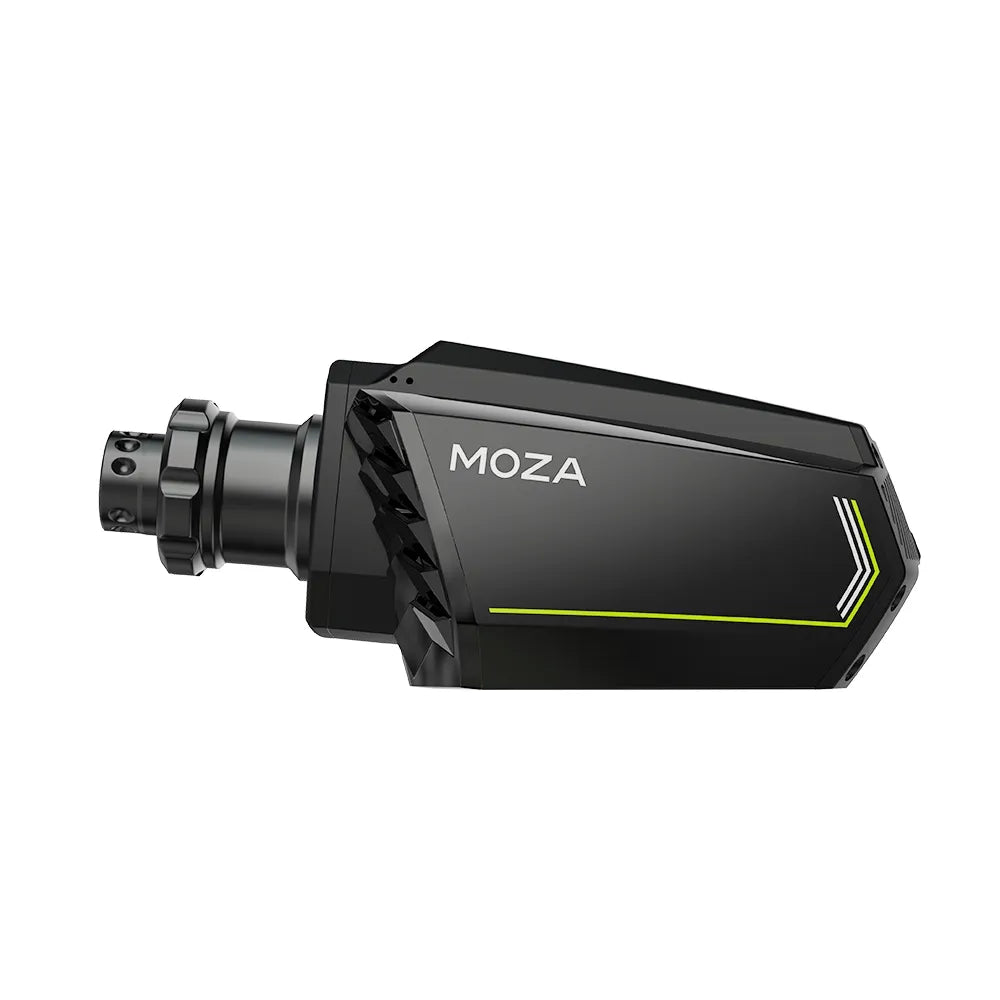

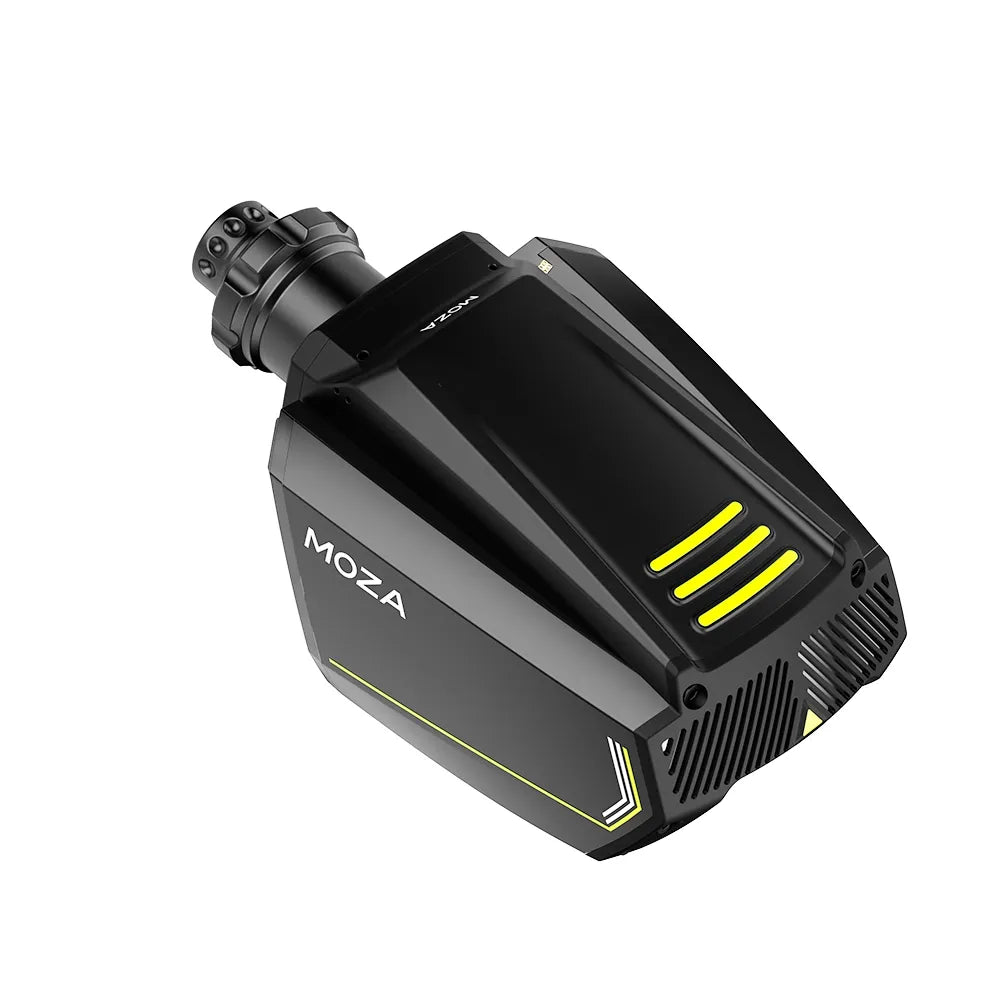

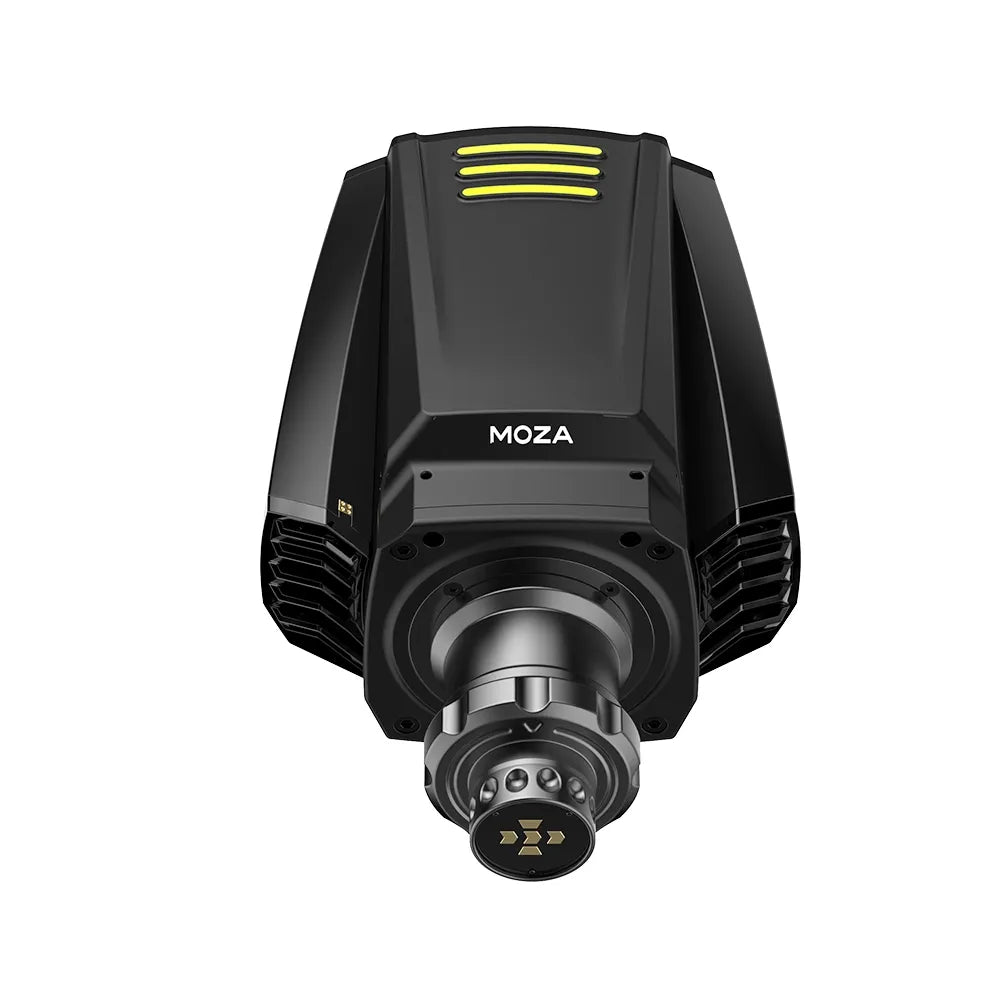

MOZA R16 V2 Wheel Base
Sale price
$1,190.00
Regular price
$1,399.99
Unit price
/
Unavailable
Couldn't load pickup availability
16Nm
Nm of Torque
Direct Drive
Driving Mechanism
PC
iRacing 360Hz Enabled
Description
The MOZA R16 V2 delivers an uncompromising sim racing experience with 16Nm of direct drive torque, a 21-bit magnetic encoder, and a high-performance slanted pole servo motor. Built with an aviation-grade aluminum body and powered by the advanced NexGen 4.0 force feedback algorithm, the R16 V2 offers unmatched precision, smoothness, and realism for competitive sim racers.
What In the Box
| Item | Quantity |
|---|---|
| R16 V2 DD Wheel Base | 1 |
| Power Adapter | 1 |
| Power Cable | 1 |
| USB Cable | 1 |
| Toolkit | 1 |
MOZA R16 V2 – Product Specification
| Feature | Details |
|---|---|
| Platform | PC |
| FFB Drive System | Direct Drive |
| MOZA Pit House Control | Support |
| Max Steering Angle | 90° ~ 2700° |
| Housing Material | Aviation Grade Aluminum Alloy |
| Color | Black |
| Peak Power | 360W |
| Input Voltage | 110V~220V AC → 36V DC |
| USB Refresh Rate | 1000Hz |
| V-shaped Struts | – |
| Encoder Resolution | 21-Bit Magnetic Encoder with 280MHz High-Performance Processor |
| Indicator | YES |
| App Functions | Supported |
| Quick Release | Supported |
| Connection Ports | Power, USB, Pedal, Dash, Shifter, Handbrake, E-stop |
| Box Contents | R16 V2 Wheel Base, User Manual, Warranty Card, Power Supply, USB Cable, Toolkit |
| Mounting Method | Bottom Mount |
| Side Mount Option | With optional side/front mount bracket |
| Desk Clamp | Optional |
| Emergency Stop Switch | Optional |
| Online Firmware Upgrade | Applicable |
| Firmware Update | Applicable |
| Dimensions (L × W × H) | 327 × 170 × 130 mm |
| Weight | 8.9 kg |
comparison
| Facet | |||||
|---|---|---|---|---|---|
| By | |||||
| By | Thrustmaster | Thrustmaster | Thrustmaster | MOZA | Thrustmaster |
| NM Of Torque | |||||
| NM Of Torque | |||||
| Driving Mechanism | |||||
| Driving Mechanism | |||||
| iRacing 360hz Enabled | |||||
| iRacing 360hz Enabled | - | - | - | Yes | - |
| Price | |||||
| Price |
Sale price
$300.00
Regular price
$599.99
Unit price
/
Unavailable
|
Sale price
$960.00
Regular price
$1,199.99
Unit price
/
Unavailable
|
Sale price
$500.00
Regular price
$999.99
Unit price
/
Unavailable
|
Sale price
$765.00
Regular price
$899.99
Unit price
/
Unavailable
|
Sale price
$1,050.00
Regular price
$1,499.99
Unit price
/
Unavailable
|
| Description | |||||
| Description | Key points: Fast brushless motor: nearly 25 watts of power for responsive, realistic Force Feedback Quick and easy wheel changing system: enjoy different styles of racing Dual-belt system for smooth... | Key points: Leather-wrapped wheel with 25 action buttons, 1 push-button and 4 rotary selectors natively recognized in GT Sport (differential braking, traction control, fuel mapping, torque management) High-velocity, next-generation 40-watt... | PRODUCT DESCRIPTION A Force Feedback racing wheel base bringing together Thrustmaster’s most advanced technologies, the TS-XW Servo Base features: A powerful 40-watt brushless servomotor. Thrustmaster’s innovative MCE (Motor Cooling Embedded)... | The MOZA R9 is the wheelbase for the racers that want to take it seriously. This cutting-edge product offers 9 Nm of torque from a direct-drive servo motor, ensuring unparalleled... | Discover realistic, unfiltered racing with the Thrustmaster T818 racing wheel baseExperience all the intensity of racing with T818. Powered by Direct Drive technology, T818 has been specially designed with both... |
